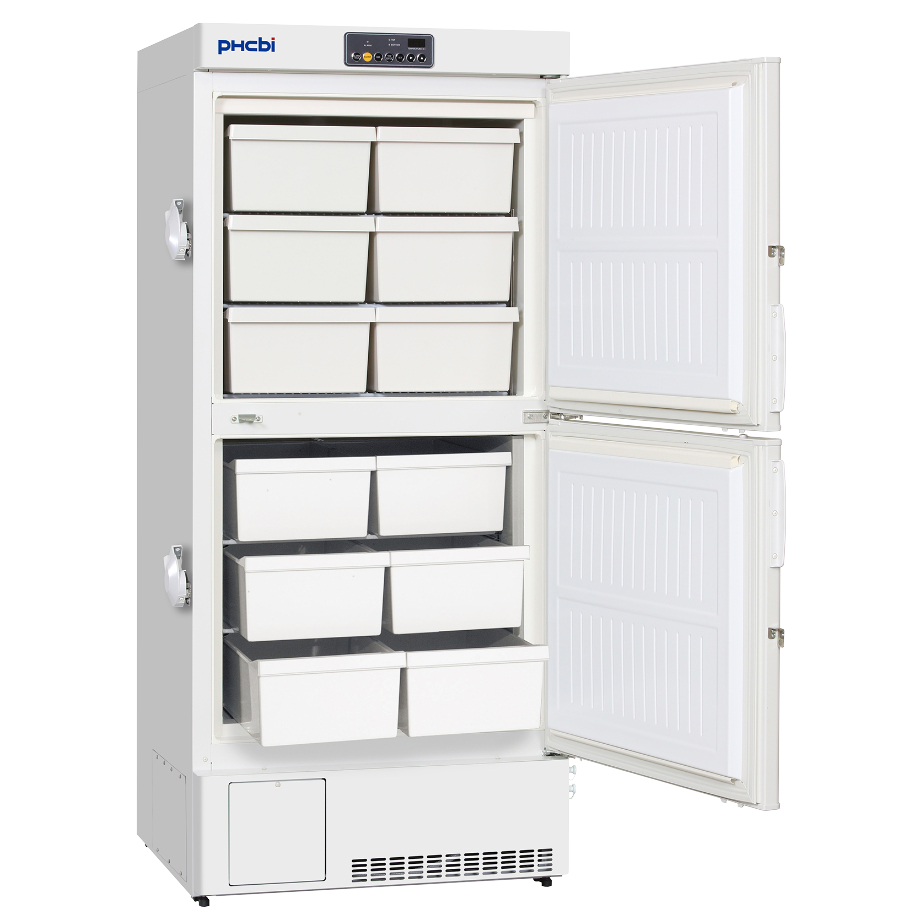

Panasonic BIOMEDICAL ECO -40°C Plasma Freezer – 479 Liters

Category:

Description

External Dimensions (W x D x H) 793 x 770 x 1802 mm
Internal Dimensions (W x D x H) 649 x 614 x 600 mm (2 chambers)
Volume 479 litres
Net Weight 165 kg
Capacity (Aluminium Racks 2” Boxes)
Capacity (Stainless Steel Racks 2” Boxe)
Cooling Performance -40 °C
Temperature Setting Range -18 to -45 °C
Temperature Control Range -20 to -40 °C
Controller Microprocessor, non-volatile memory
Display LED
Temperature Sensor Thermistor
Refrigeration System Direct
Compressors 2 x 400 (Used in upper chamber and lower chamber respectively)
Refrigerant HC
Insulation Material PUF
Insulation Thickness 70 mm
Exterior Material Painted Steel
Interior Material Painted Steel
Outer Doors/Lid 2
Outer Door Lock Y
Inner Doors/Lid
Shelves 6
Max. Load – Per Shelf 30 kg
Max. load – Total
Vacuum Release Port
Access Port 2 (1 each chamber)
Access Port Position Back
Access Port Diameter 30
Casters 4 (2 leveling feet)
Power Failure V-B-R
High Temperature V-B-R
Low Temperature V-B-R
Filter
Door Open
Power Supply 220/230/240 V
Frequency 50 Hz
Noise Level 42 dB [A]

Accessories

Key  set  1
Defrost spatula  pc  1

Options

Temperature recorders
– Circular type MTR-G85C-PE
– Chart paper: RP-G85-PW
– Ink pen: PG-R-PW
– Recorder housing:
MDF-S740T-PW (for top side)
MPR-S7-PW (for lower front)
– Continuous strip type MTR-4015LH-PE
– Chart paper: RP-40-PW
– Recorder housing:
MPR-S30-PW (for lower front)
Storage container  MDF-05SC-PW (2 pcs/set), 6 sets/Freezer
(Inner dimension) mm  W280 x D552 x H157

Appearance and specifications are subject to change without notice.

1) External dimensions of main cabinet only, excluding handle and other external projections.

2) Air temperature measured at freezer centre, ambient temperature 35ºC, no load.

3) Nominal value – Background noise 20 dB[A]External dimensions of main cabinet only, excluding handle and other external projections.

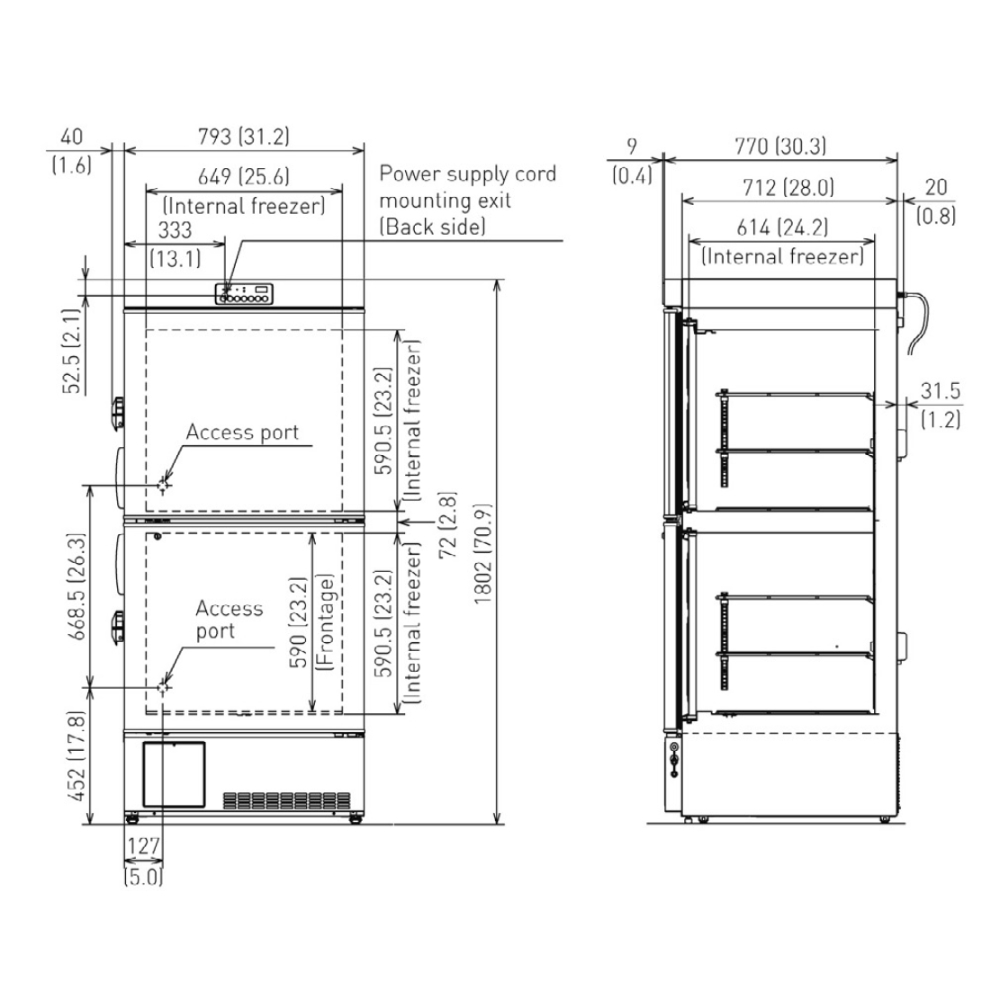

Dimensions

Additional information

Weight 165 kg
Dimensions 793 × 770 × 1802 cm
