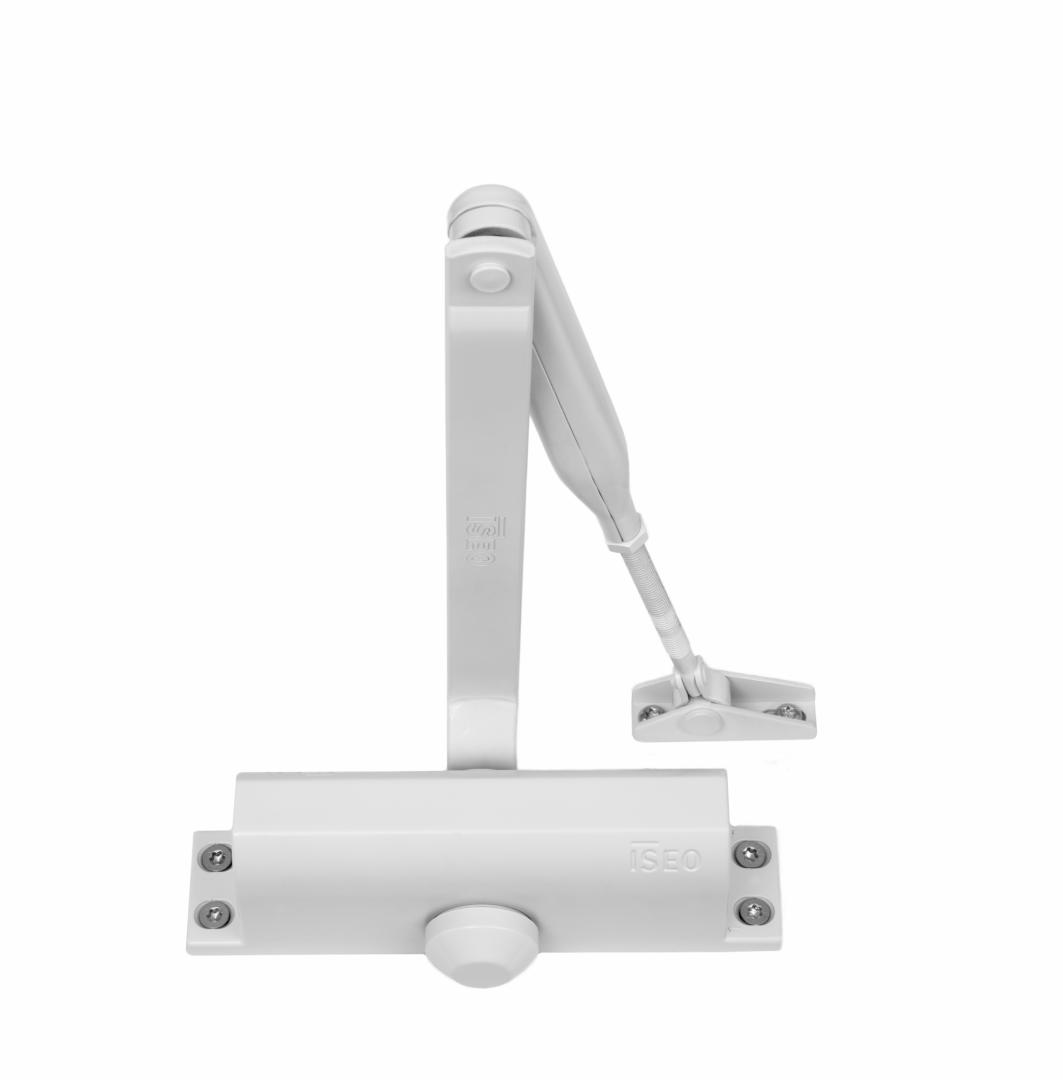

HYDRAULIC DOOR SHOCK ABSORBER ISEO WHITE

Description

ISEO HYDRAULIC DOOR DAMPER WHITE 37L100004; Closing force: EN 2/3/4 selectable for doors up to 1,100 mm wide (fixed force EN 3 in parallel arm configuration for doors up to 950 mm wide); Size selectable by changing the position of the body relative to the hinges and rotating the connecting arm shoe; Maximum opening: 180° (in all forces and mountings) Adjustment valves: Closing speed (180°-15°), Locking speed (15°-0°); Dimensions: 182×62×39.5 mm (body), 188×44×67.5 mm (accessory cover)
