Fire Detection System POWER SUPPLY 24V / 5.5A

Description

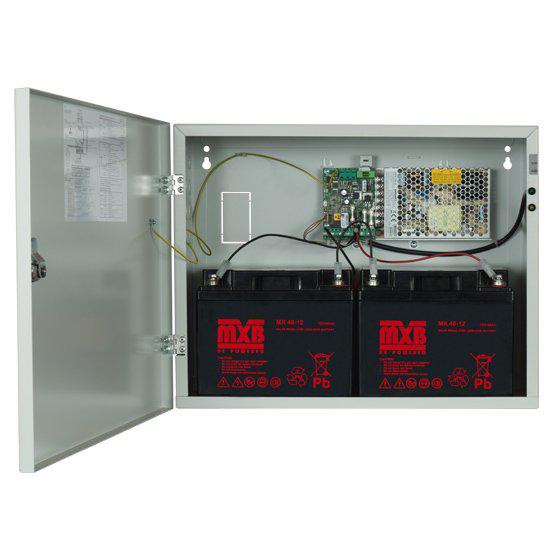

Power supply for 24V / 5.5A fire detection systems in Merawex ZSP100-5.5A-40 metal box, space for 2 12V / 40Ah batteries, Input voltage: 100 / 230VAC, high efficiency under load and low consumption, RS-communication 232 / RS-485, low failure rate (0.5% in three years), outputs provided with separate fuses, LED indicator of the operating status of the power supply, remote signaling: mains fault and battery fault (three contacts relay available for each type), external alarm input, overload protection of output circuits and batteries, against reversal of battery polarity, dimensions: 455 × 356 × 187 mm, weight: 7.5kg. The sources are certified EN 54-4, EN 12101-10
