SIDE DIGITAL DETECTOR

Description

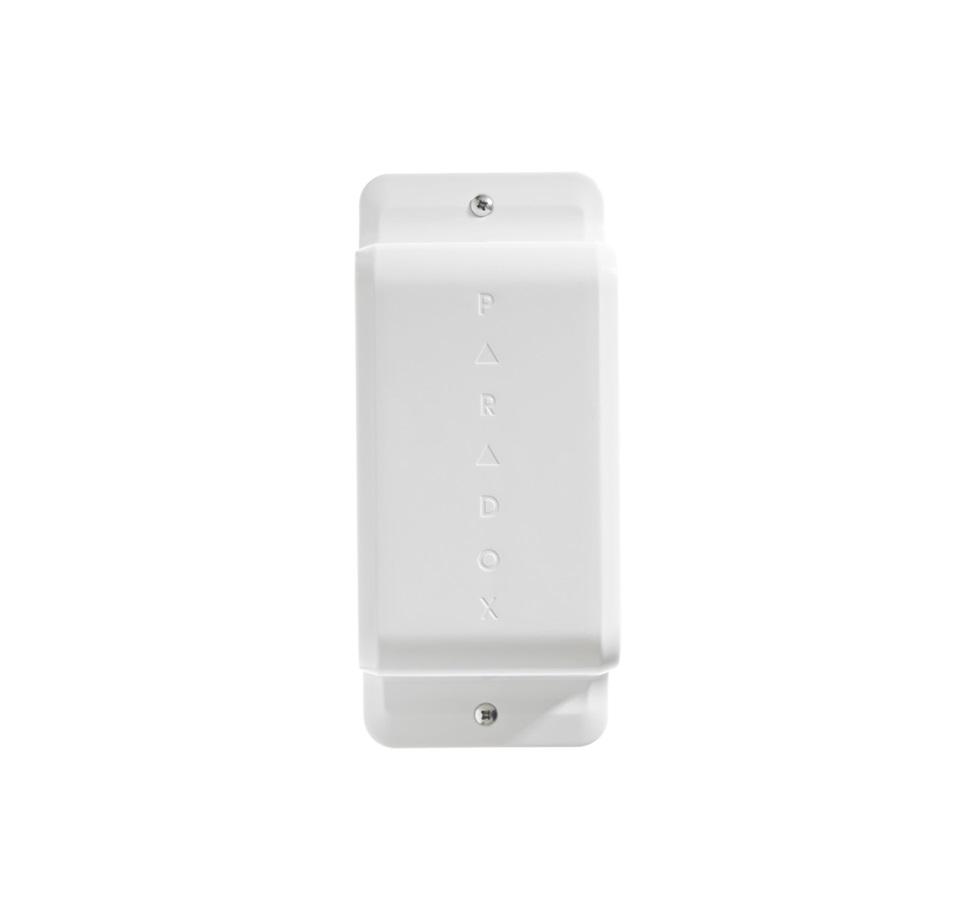

Side-view digital detector, Paradox NV780MX, and 4 dual sensors with anti-masking and animal immunity – ENVY series; the model incorporates 2 passive IR detectors, arranged at 180 °, with 2 detection elements each (total 8 narrow rays); NV780MX – works both conventionally and addressably; coverage up to 12m per side (total: 24m); efficient lens focusing point (1.77 “) for generating long and narrow rays; the 2 pairs of narrow rays on each side generate 2 distinct signals at the intersection of the protected area; the alarm is generated only if both rays have intersected; animal immunity: 40kg; minimum installation height: 1.5m; detection radius adjustable both vertically and horizontally, to avoid the detection of unwanted bodies; Vertical adjustment – to extend / decrease the detection radius. side, can be adjusted independently in 5 steps: 0 ° = 12m; 5 ° = 10.5m; 10 ° = 7.5m; 15 ° = 5.25m; 20 ° = 3m; Horizontal adjustment (of both radii) – to avoid detection of unwanted objects in the immediate vicinity of the detector (0 ° or 3 ° away from the wall), can be configured to report as a single area or as separate areas
