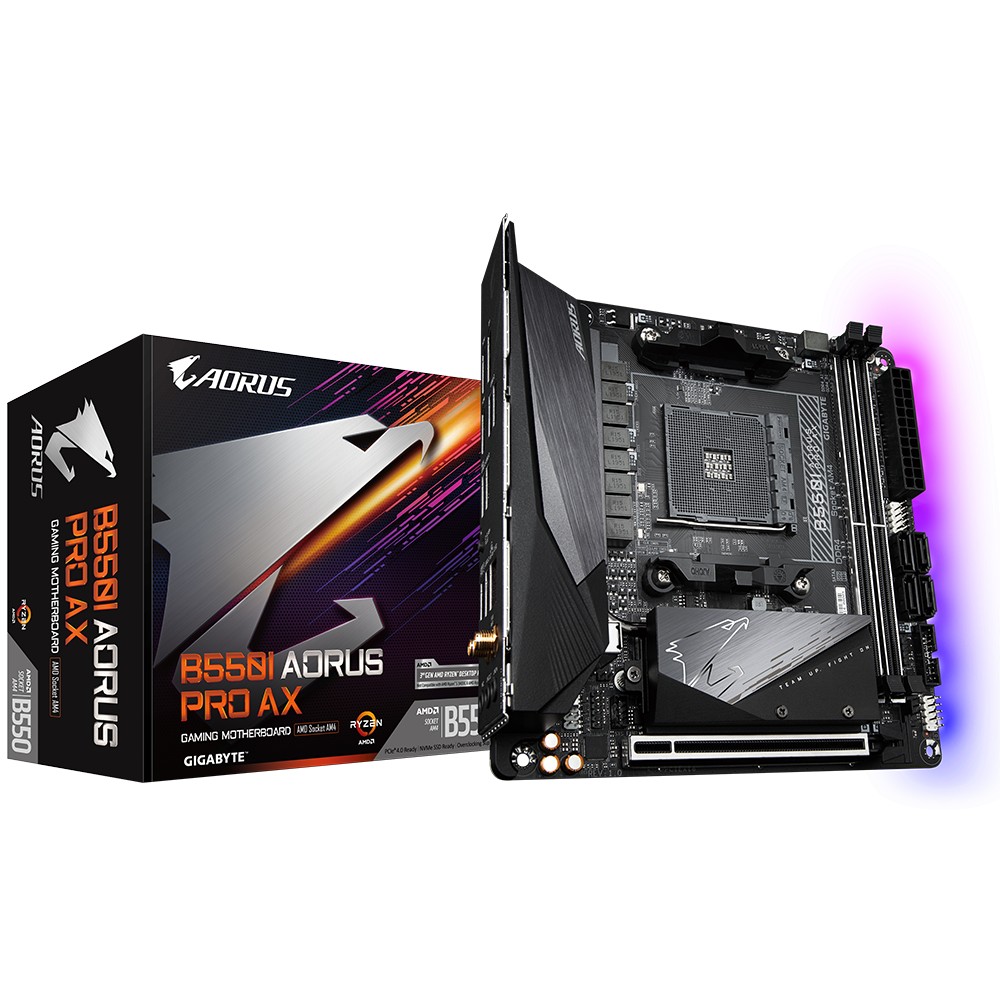

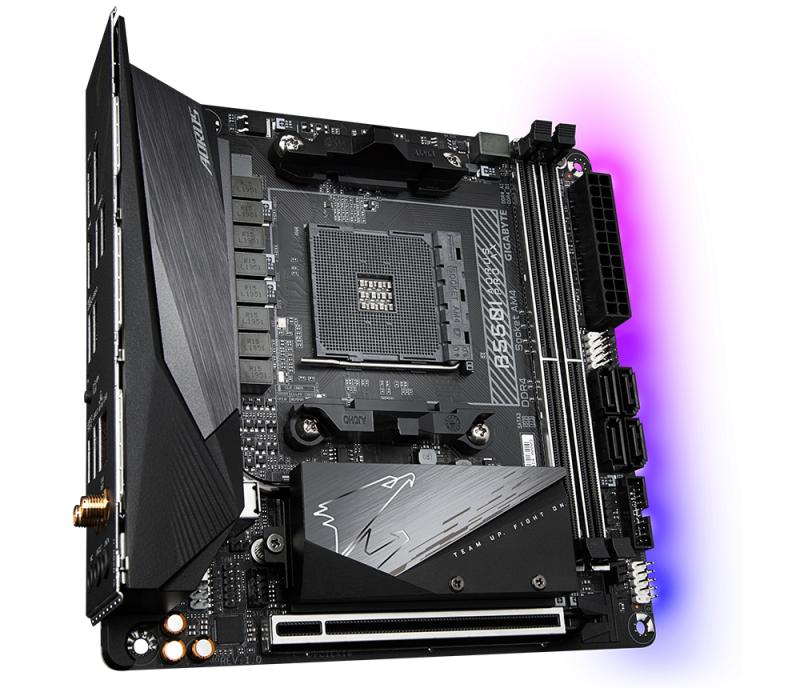

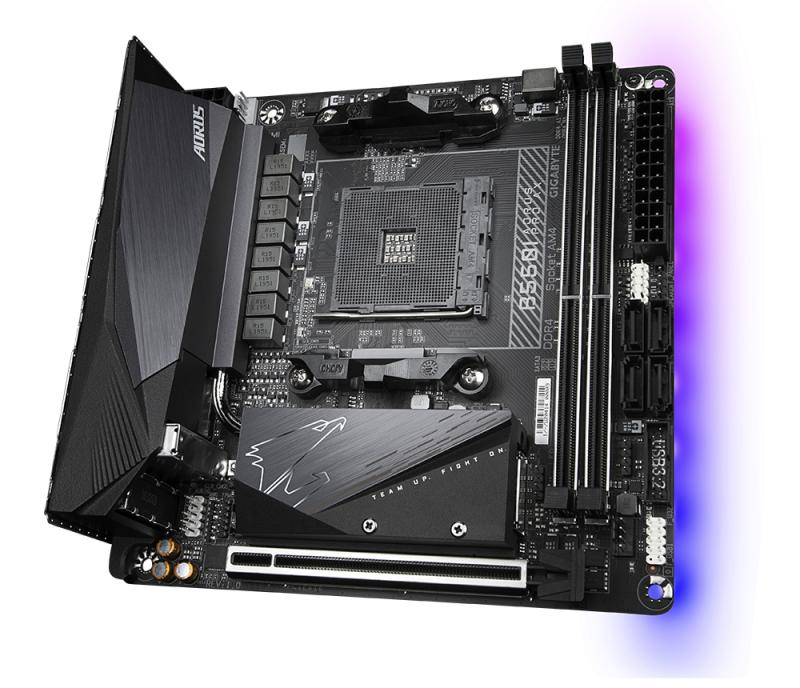

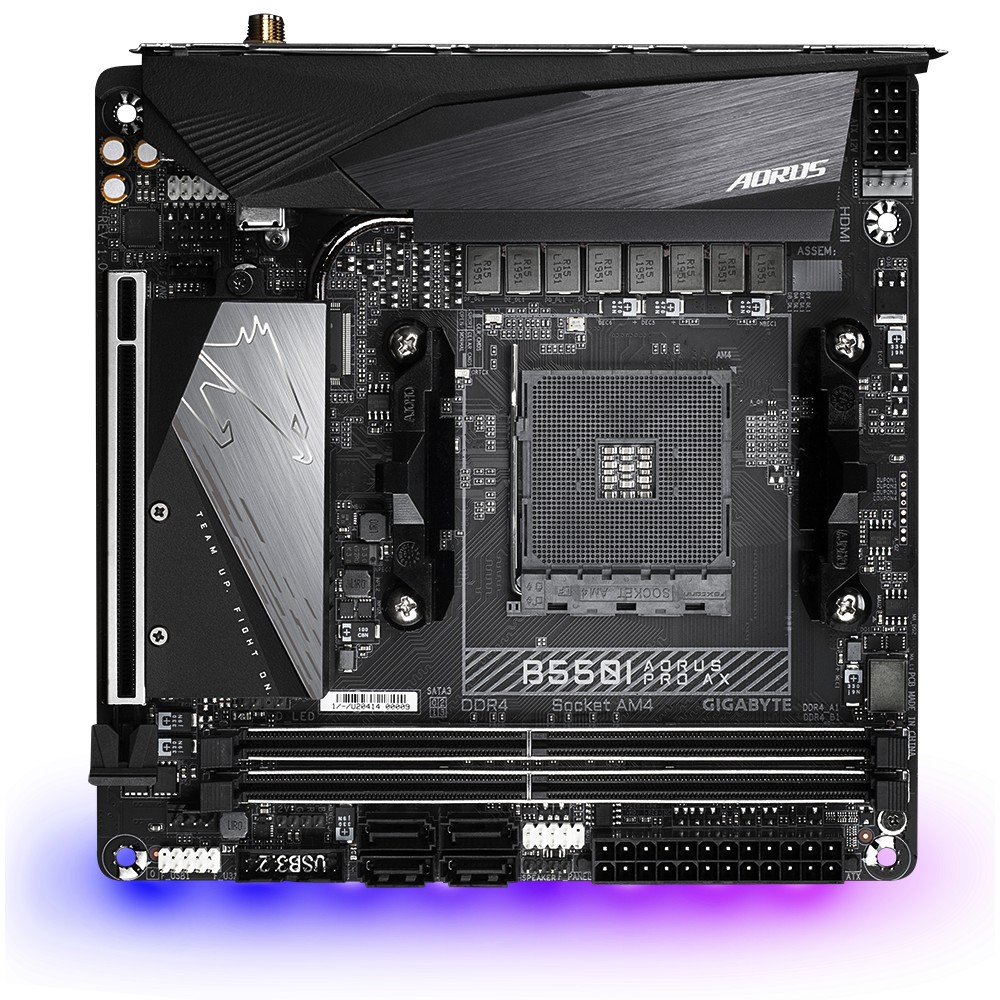

Motherboard GIGABYTE B550I AORUS PRO AX AM4

Description

Motherboard Gigabyte B550I AORUS PRO AX AM4 CPU AMD Socket AM4, support for: AMD Ryzen ™ 5000 Series / 3rd Gen Ryzen ™ and 3rd Gen Ryzen ™ with Radeon ™ Graphics Processors (Please refer “CPU Support List” for more information.) Chipset AMD B550 Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of memory system AMD Ryzen ™ 5000 series Processors / 3rd Gen AMD Ryzen ™ Processors: Support for DDR4 5100 (OC) / 5000 (OC) / 4866 (OC) / 4600 (OC) / 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC) / 3200/2933/2667/2400/2133 MHz memory modules 3rd Gen AMD Ryzen ™ with Radeon ™ Graphics processors: Support for DDR4 5300 (OC) / 5200 (OC) / 5000 (OC) / 4866 (OC) / 4600 (OC) / 4400 (OC) / 4000 (OC) / 3600 (OC) / 3333 (OC ) / 3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8 / 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memo ry modules (Please refer “Memory Support List” for more information.) Onboard Graphics Integrated in the New Generation AMD Ryzen ™ with Radeon ™ Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120×2880 @ 60 Hz * Support for DisplayPort 1.4 version , HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096×2160 @ 60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB Audio Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4 / 5.1 / 7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN Realtek® 2.5GbE LAN chip (2.5 Gbit / 1 Gbit / 100 Mbit) Wireless Communication module Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4 / 5 GHz Dual – Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate https://www.gigabyte.com/Motherboard/B550I-AORUS-PRO-AX-rev-10/sp#sp
