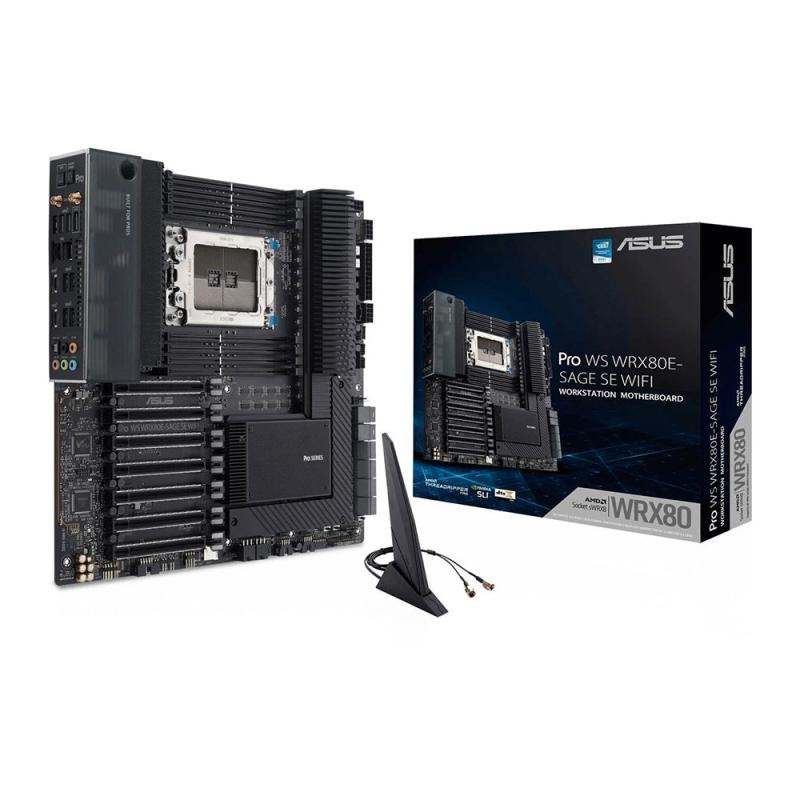

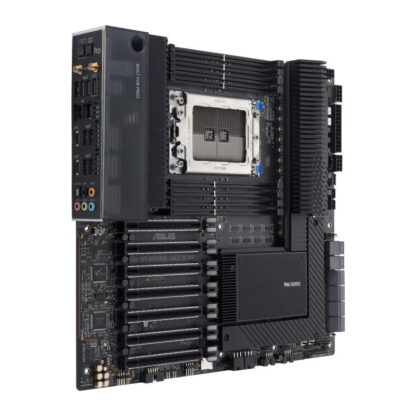

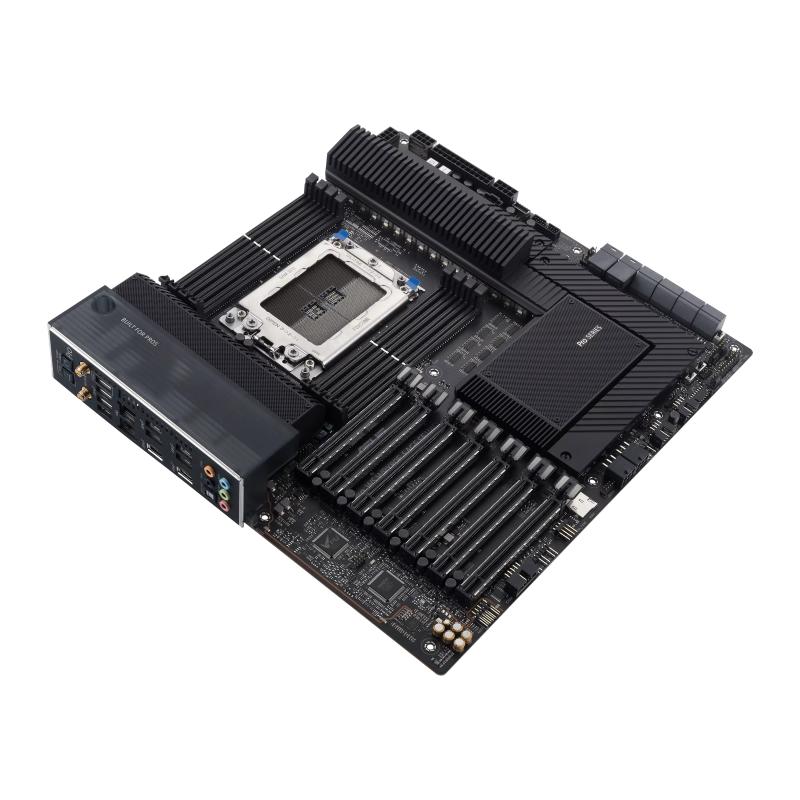

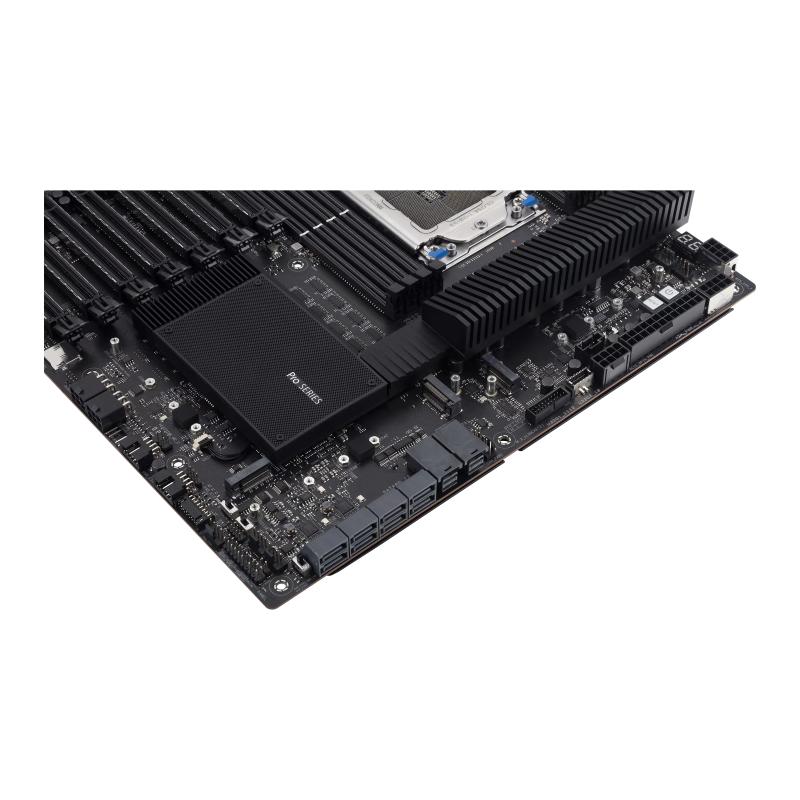

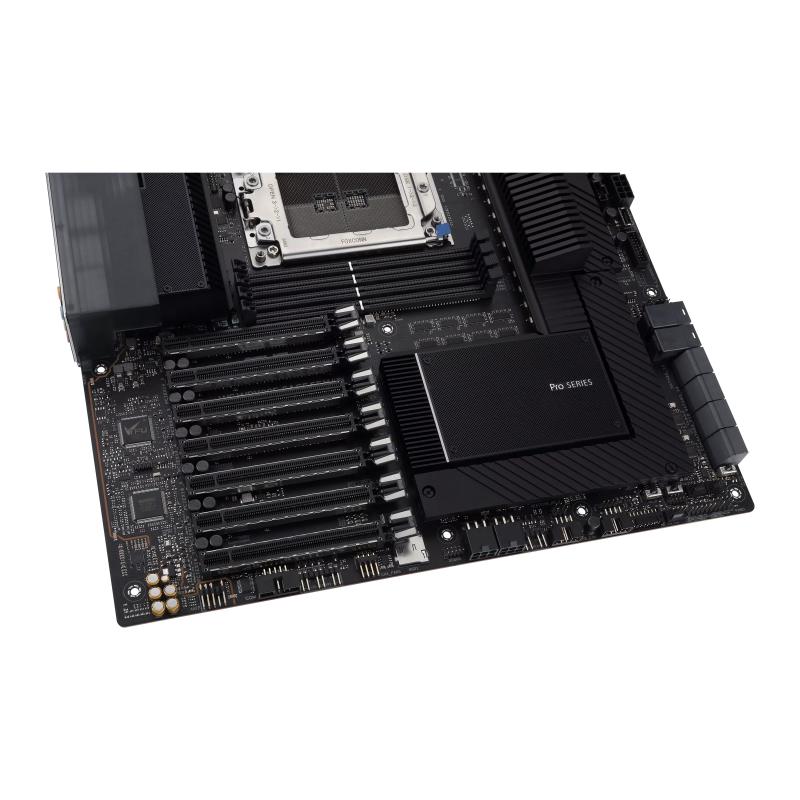

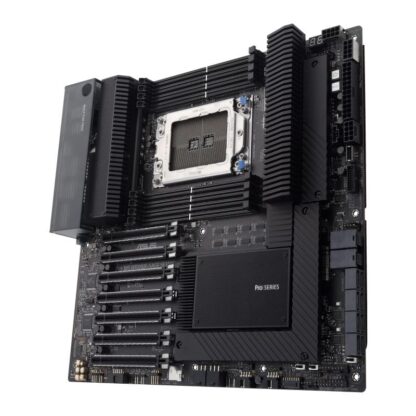

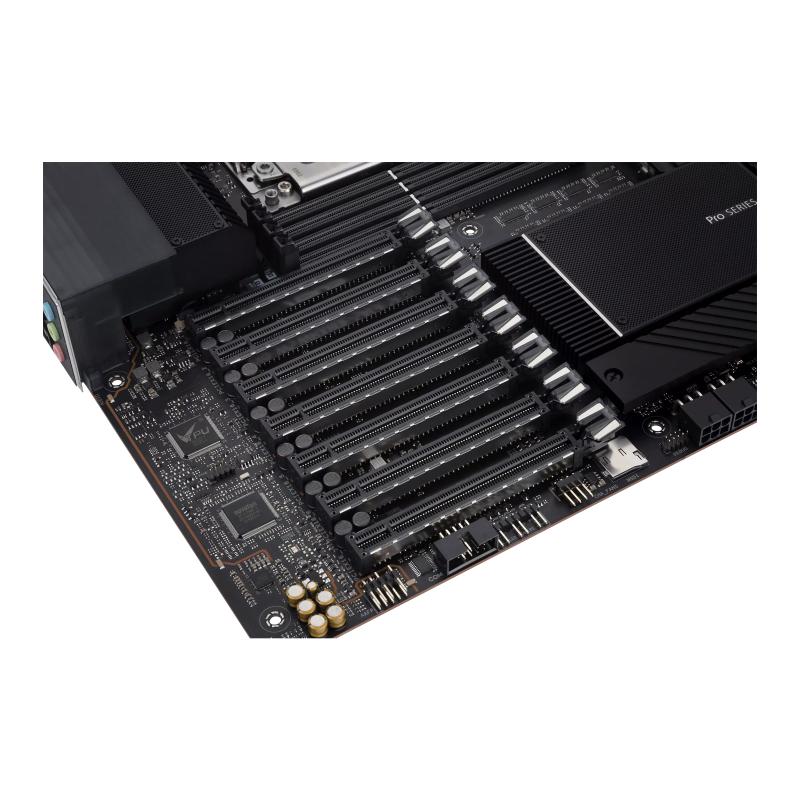

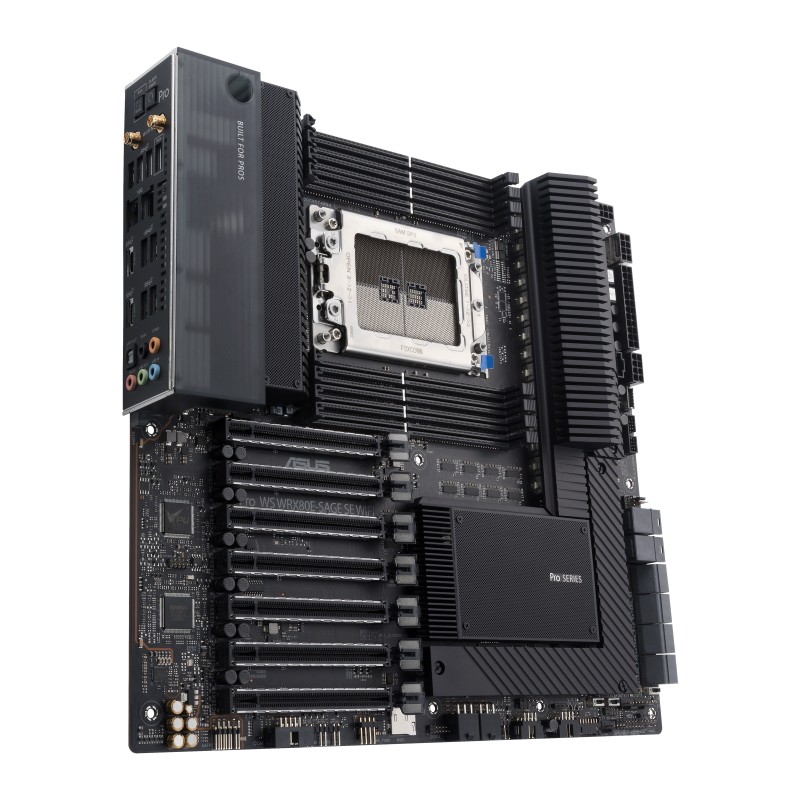

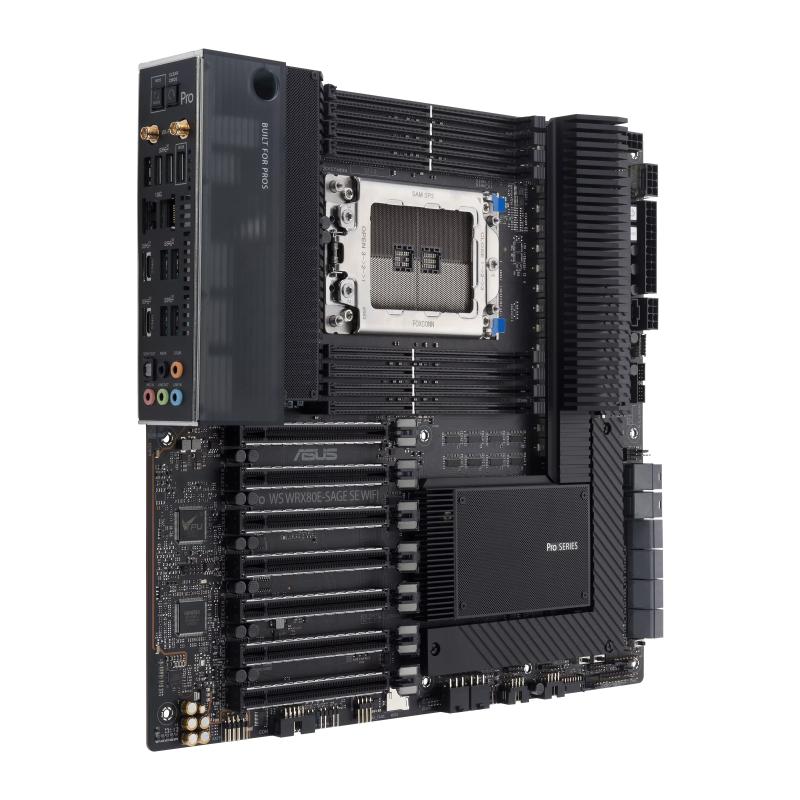

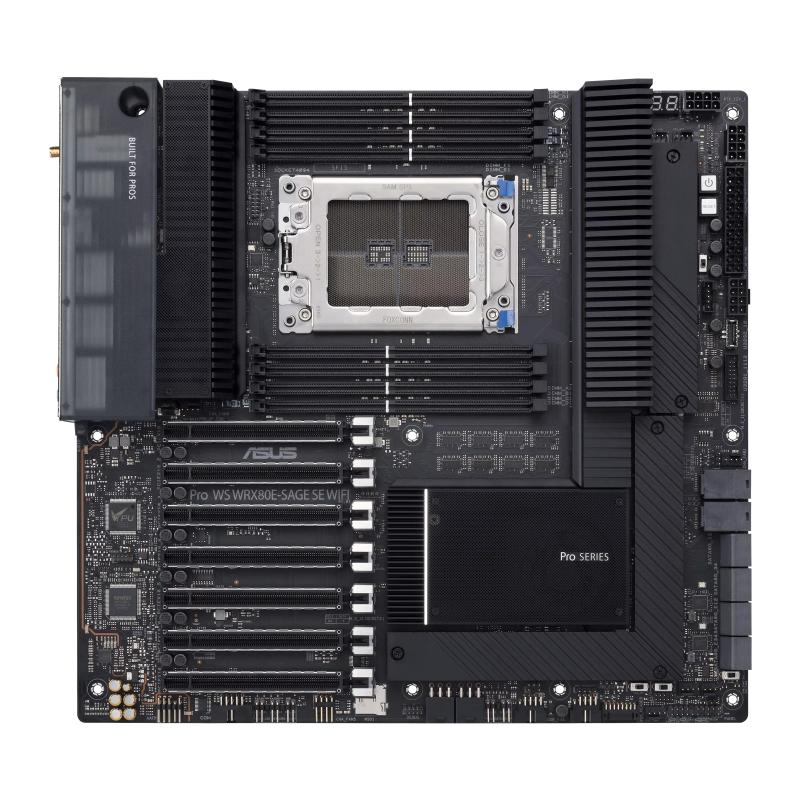

Asus AMD Pro WS WRX80E-SAGE SE WIFI AMD® Ryzen Motherboard ™ Threadripper ™ Pro Processors * * Refer to www.asus.com for CPU support list. Chipset AMD WRX80 Chipset Memory Memory Channels: 8DDR4 (Eight Channel) Max Memory Size: 2048GB 8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory * 8 Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). AMD Ryzen Expansion Slots ™ Threadripper ™ PRO Series Processors 7 x PCIe 4.0 / 3.0 x16 slot (s) * * Support PCIe bandwidth bifurcation for RAID on CPU function. Multi-GPU Support Supports NVIDIA 4-Way / 3-Way / 2-Way SLI® Technology Storage Supports 3 x M.2 slots and 8 x SATA 6Gb / s AMD Ryzen ports ™ Threadripper ™ PRO Series Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (PCIe supports 4.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280/22110 (PCIe supports 4.0 x4 & SATA modes) U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices * AMD WRX80 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices * 4 x SATA 6Gb / s ports ASMedia ASM1061 Controller 4 x SATA 6Gb / s ports Supports NVMe RAID configurations via M.2 storages * The U.2_1 slot shares bandwidth with M.2_2, U. 2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is perchased seperately. Ethernet 1 x Intel® X550-AT2 Dual 10Gb Ethernet Wireless & Bluetooth Intel® Wi-Fi 6 AX200 2×2 Wi-Fi 6 (802.11 a / b / g / n / ac / ax) support 1024QAM / OFDMA / MU-MIMO Supports up to 2.4Gbps max data rate Supports 2.4 / 5GHz Dual-Band Supports channel bandwidth: HT20 / HT40 / HT80 / HT160 Supports PCIe Bluetooth interface v5.1.
