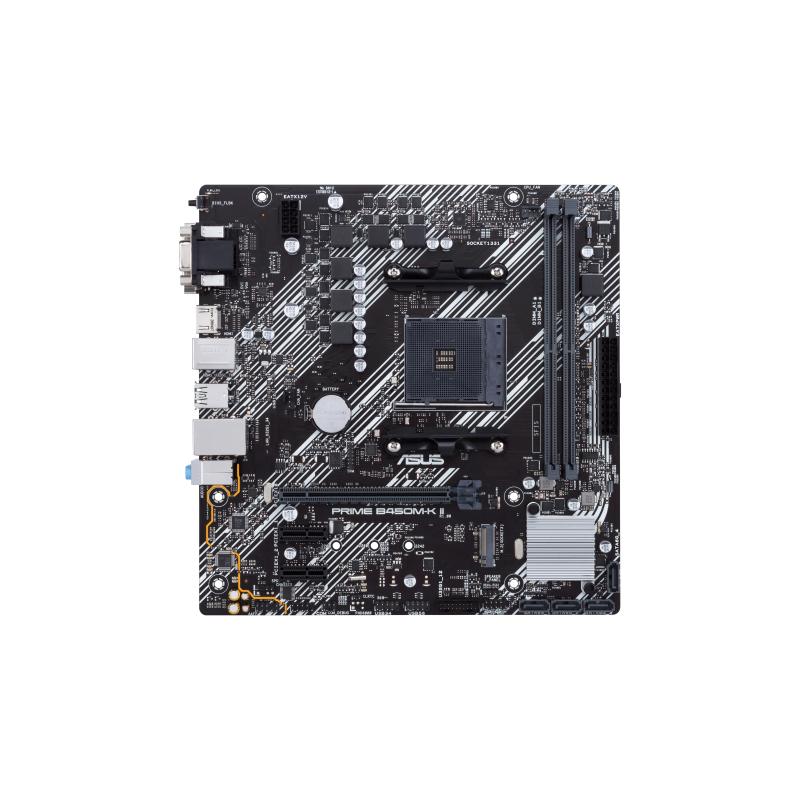

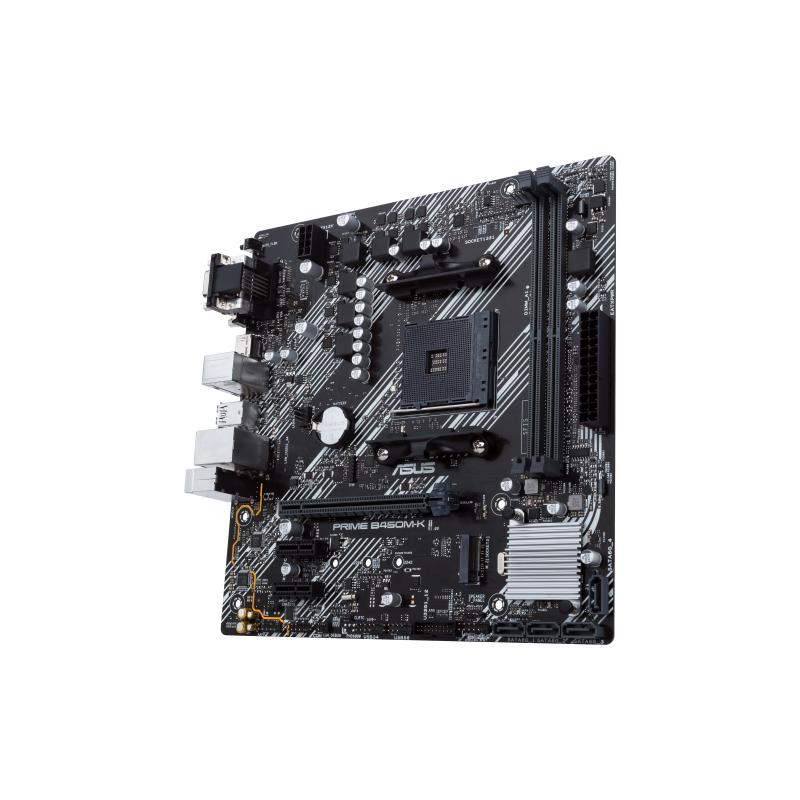

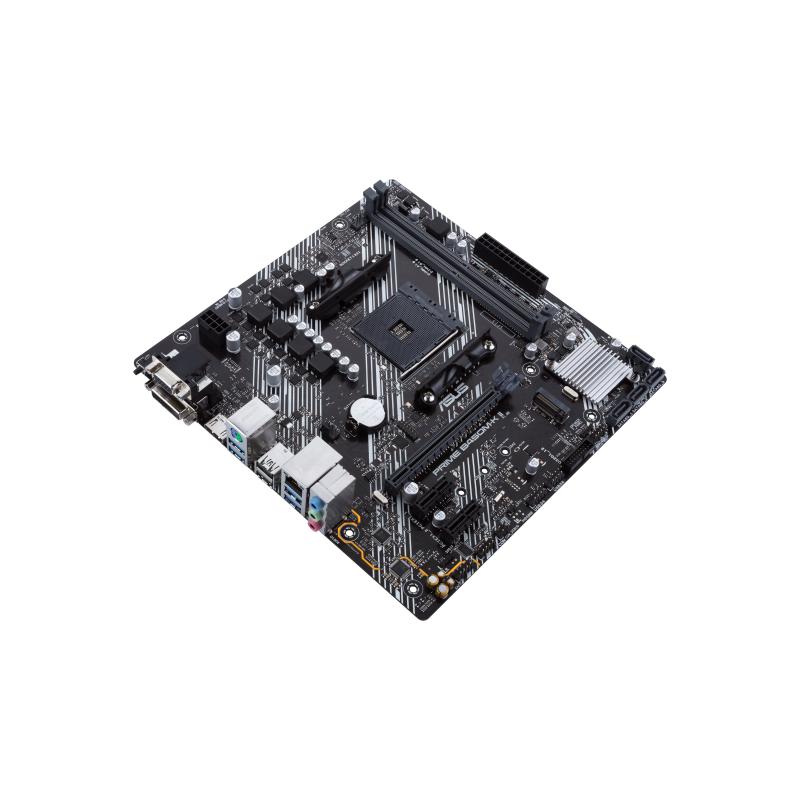

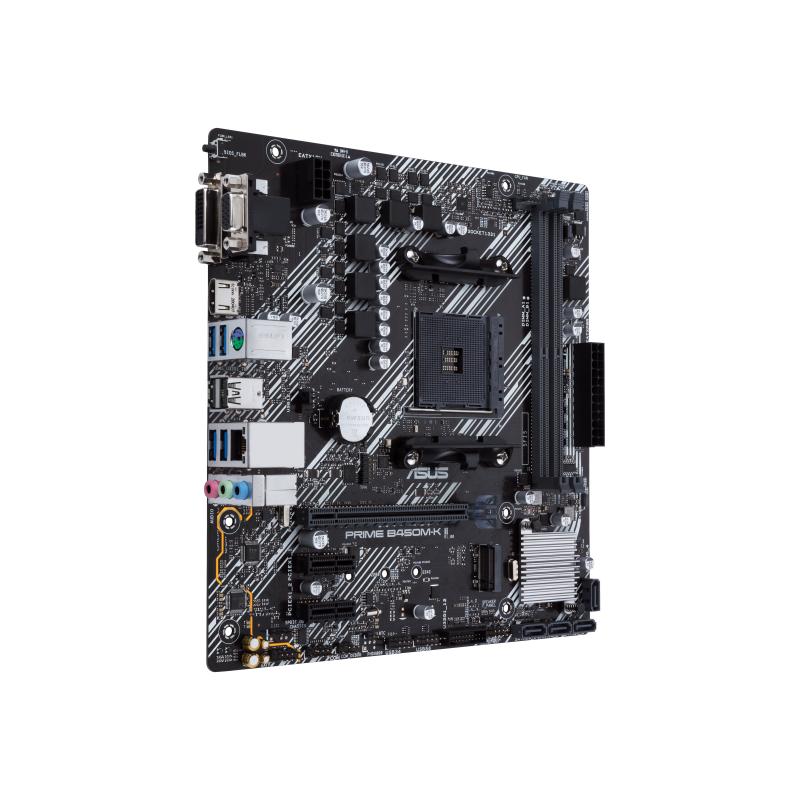

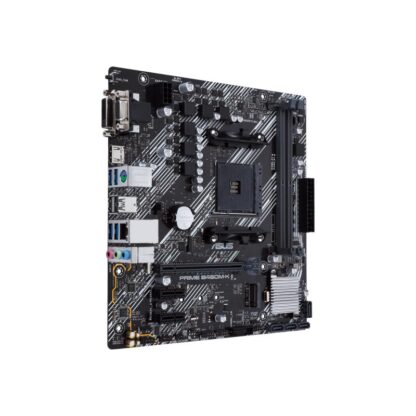

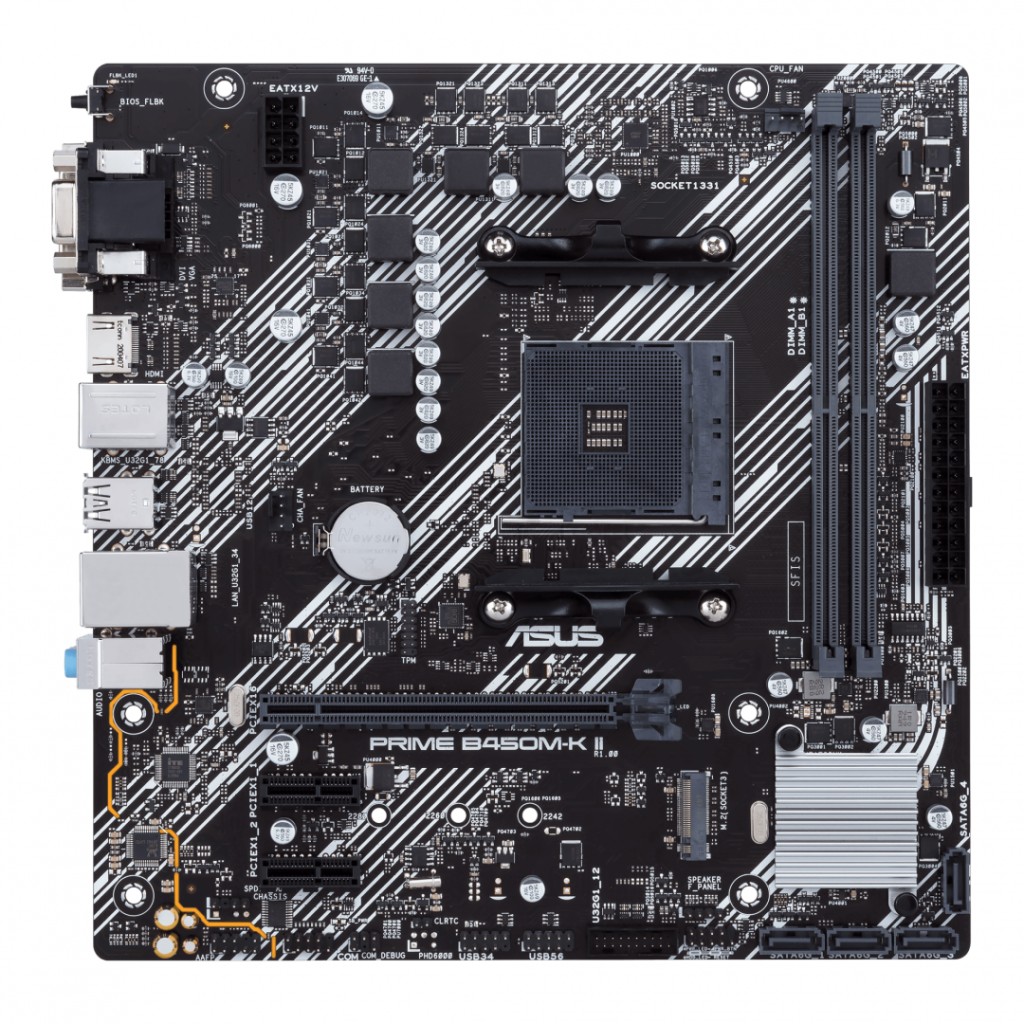

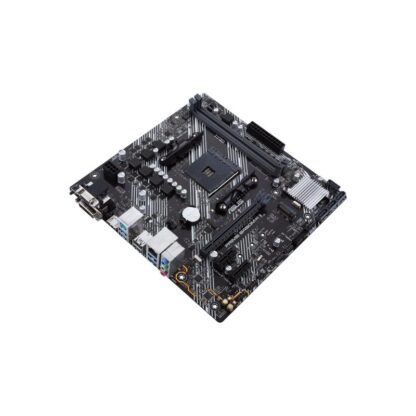

Motherboard ASUS AMD PRIME B450M-K II

Description

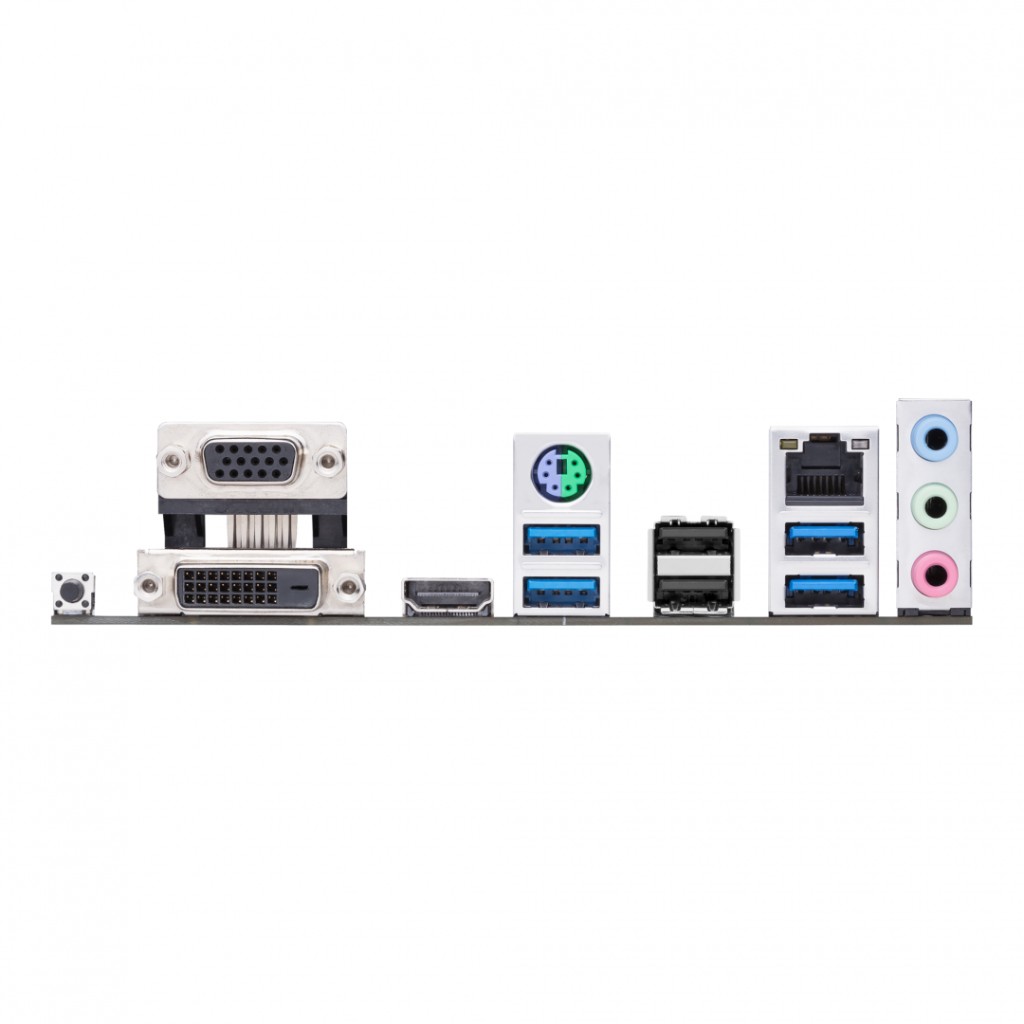

Motherboard Asus AM4, PRIME B450M-K II CPU AMD AM4 Socket for 3rd / 2nd / 1st Gen AMD Ryzen ™ / 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics / Athlon ™ with Radeon ™ Vega Graphics Processors * * Refer to www.asus.com for CPU support list Chipset AMD B450 Memory 3rd / 2nd / 1st Gen AMD Ryzen ™ / 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics / Athlon ™ with Radeon ™ Vega Graphics Processors 2 x DIMM, Max . 64GB, DDR4 4400 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3300 (OC) / 3200 (OC) / 3000 ( OC) / 2933 (OC) / 2800 (OC) / 2666/2400/2133 MHz Un-buffered Memory * Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor. Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics / Athlon ™ with Radeon ™ Vega Graphics Processors * 1 x D-Sub 1 x DVI-D 1 x HDMI 2.0b * Graphics specifications may vary between CPU types . Expansion Slots 3rd / 2nd / 1st Gen AMD Ryzen ™ Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD Athlon ™ with Radeon ™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x4 mode) AMD B450 chipset 2 x PCIe 2.0 x1 Storage Total supports 1 x M.2 slot (s) and 4 x SATA 6Gb / s ports 3rd / 2nd / 1st Gen AMD Ryzen ™ / 2nd and 1st Gen AMD Ryzen ™ with Radeon ™ Vega Graphics: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) Athlon ™ with Radeon ™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD B450 chipset: 4 x SATA 6Gb / s port (s), Support Raid 0, 1, 10 LAN Realtek ® RTL8111H ASUS LANGuard Audio Realtek 7.1-Channel High Definition Audio CODEC * – Supports: Jack-detection, Multi-streaming, Front Panel Jack- retasking, up to 24-Bit / 192kHz playback Audio Feature: – LED-illuminated design – Audio Shielding – Dedicated a audio PCB layers – Premium Japanese audio capacitors https://www.asus.com/Motherboards/PRIME-B450M-K-II/specifications/
