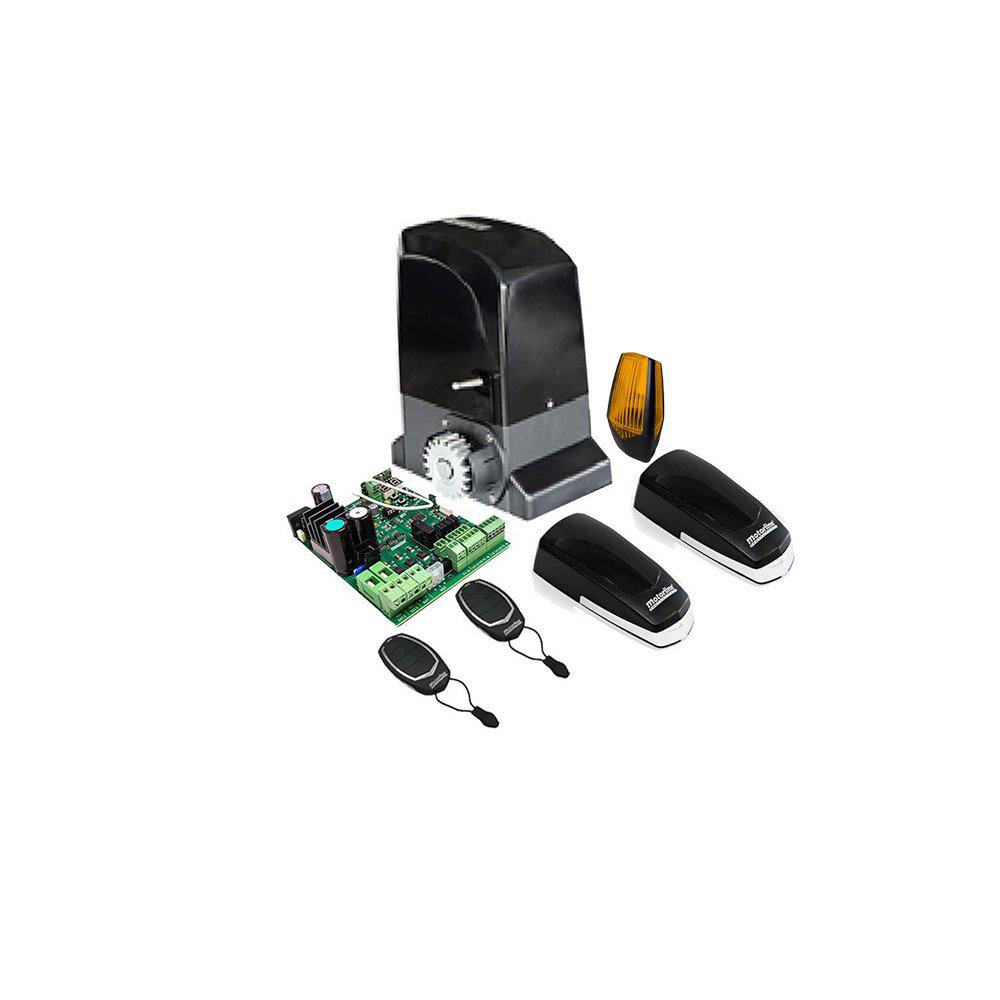

KIT GALO500 SPEED 230 VAC 450N 600 KG

$544,00

Available on backorder

EAN: KIT GALO500 SPEED SKU: KIT GALO500 SPEED Category:

Description

KIT GALO500 SPEED 230 VAC 450N 600 KG Brushless motor GALO500 SPEED: Motor technology: BLDC Motor reduction type: vIrreversible Protection class: IP44 Power supply: 230 Vac – 50/60 Hz Motor power: 36 Vdc Control board power supply 21/26 Vac Nominal current: v10A Maximum absorbed current: 18A Nominal power: 360W Nominal speed: 225-450 mm/s Closing speed (with maximum weight): 400 mm/s Operating frequency: 55% Cycles/hour Continuous operation Impulse force: 450N Operating temperature: -20°C to +55°C Limiter type stroke: Magnetic/Mechanical Encoder: Native digital encoder Control board: MC91BL-SC Backup batteries (Optional) MBAT24V Maximum gate weight 600 Kg Pinion diameter 84 mm Control board MC91BL-SC: Motor power supply: 26Vac Control board power supply 21 Vac Flashing light output 24Vdc 4W Max. RGB flashing light output: 24Vdc 100mA Max. Motor output 24Vdc 400W Max. Auxiliary accessories output 24Vdc 8W Max. Security device and button output 24Vdc Operating temperature: -25°C to +55°C Built-in radio receiver: 433.92 MHz Compatible remote controls: 12bit or Rolling Code Maximum memory capacity: 100 (full opening) – 100 (pedestrian opening) Control board dimensions 106×140 mm Fuses F1 | F2 16AL 250V | 1.6AL 250V Battery: 24Vdc 7A FALK remote control: Frequency: 433.92 MHz Number of channels: 4 Emission distance: 100 m (in open field) Operating temperature: -20°C – +70°C Size: 64 x 32 mm Consumption: 12 mA Battery: 3 VDC (1 battery) MF30 photocells: Detection type: IR (Infra-red) IR operating distance: 940 m Detection distance: up to 25 meters Supply voltage: 12/24V DC/AC Consumption: TX – 30 mA/24V DC RX – 30 mA/24V DC Maximum current on relay contact: maximum 1 A/220V DC or 250V AC Protection degree: IP54 Operating temperature: from -20°C to +70°C Size: 50.5 x 25 mm Package contains: 1x GALO500 SPEED Motor 1x MC91BL-SC Control Board 2x FALK Remote Control 1x MF30 Photocells

Additional information

Weight 1 kg
