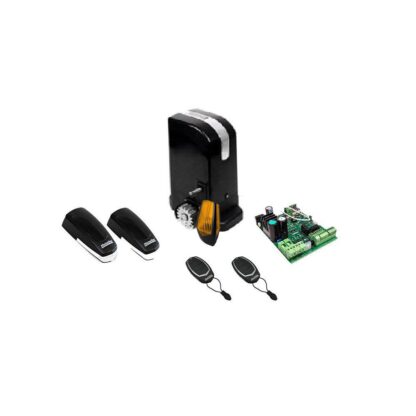

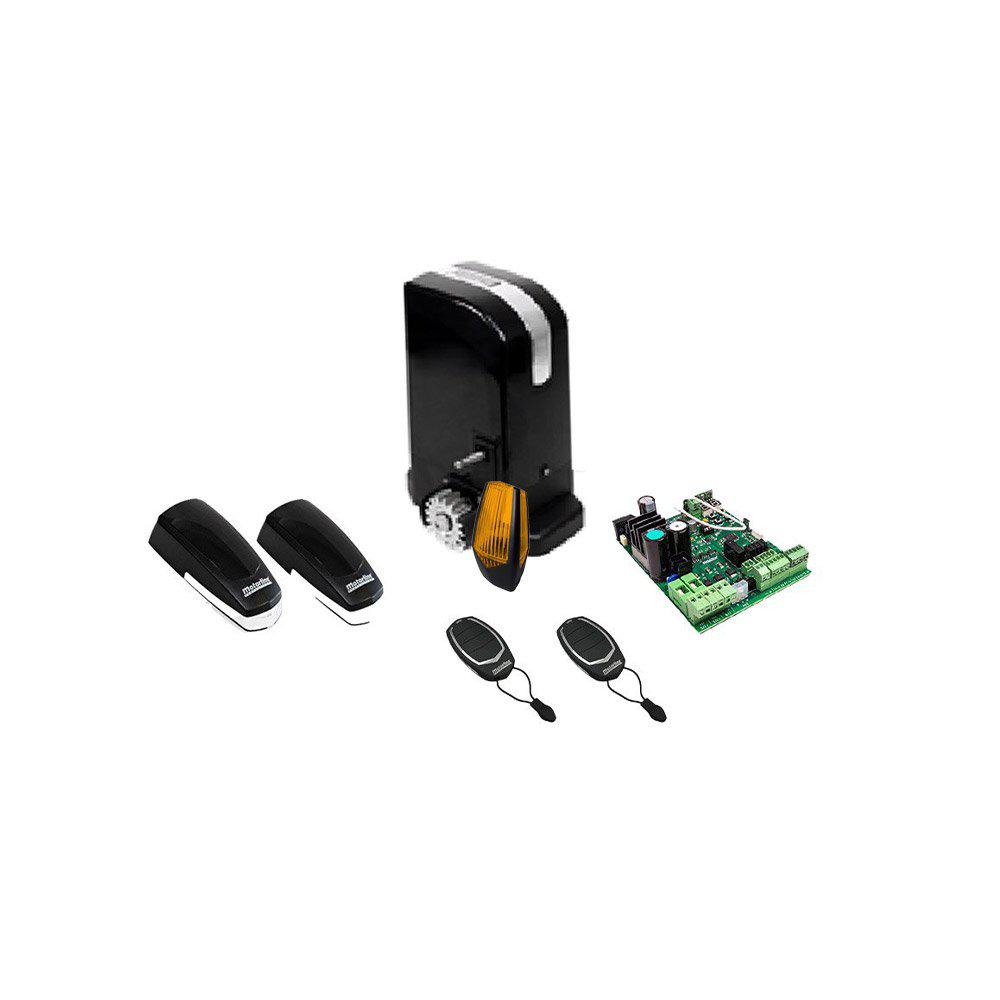

KIT GALO500 230 VAC 450N 600 KG

$434,00

Available on backorder

EAN: KIT GALO500 SKU: KIT GALO500 Category:

Description

KIT GALO500 230 VAC 450N 600 KG Brushless motor GALO500: Motor technology: BLDC Motor reduction type: Irreversible Protection class: IP44 Power supply: 230 Vac – 50/60 Hz Motor power: 36 Vdc Control board power supply 21/26 Vac Nominal current: 7A Maximum absorbed current: 12A Nominal power: 260W Nominal speed: 120-240 mm/s Maximum speed (with maximum weight): 214 mm/s Working frequency: 55% Impulse force: 450N Operating temperature: -20°C to +55°C Stroke limiter type: Magnetic/Mechanical Encoder: Encoder native digital Control board: MC91BL-SC Backup batteries (Optional): MBAT24V Maximum gate weight: 600 Kg Pinion diameter 72 mm Control board MC91BL-SC: Motor power supply 26Vac Control board power supply 21 Vac Flashing light output 24Vdc 4W Max. RGB flashing light output 24Vdc 100mA Max. Motor output 24Vdc 400W Max. Auxiliary accessories output 24Vdc 8W Max. Security device and button output 24Vdc Operating temperature: -25°C to +55°C Built-in radio receiver: 433.92 MHz Compatible remote controls: 12bit or Rolling Code Maximum memory capacity: 100 (full opening) – 100 (pedestrian opening) Control board dimensions 106×140 mm Fuses F1 | F2 16AL 250V | 1.6AL 250V Battery: 24Vdc 7A FALK remote control: Frequency: 433.92 MHz Number of channels: 4 Emission distance: 100m (in open field) Operating temperature: -20°C – +70°C Size: 64 x 32 mm Consumption: 12 mA Battery: 3 VDC (1 battery) MF30 photocells: Detection type: IR (Infra-red) IR operating distance: 940 m Detection distance: up to 25 meters Supply voltage: 12/24V DC/AC Consumption: TX – 30 mA/24V DC RX – 30 mA/24V DC Maximum current on relay contact: maximum 1 A/220V DC or 250V AC Protection degree: IP54 Operating temperature: from -20°C to +70°C Size: 50.5 x 25 mm Package contains: 1x GALO500 Motor 1x MC91BL-SC Control Board 2x FALK Remote Control 1x MF30 Photocells

Additional information

Weight 1 kg
