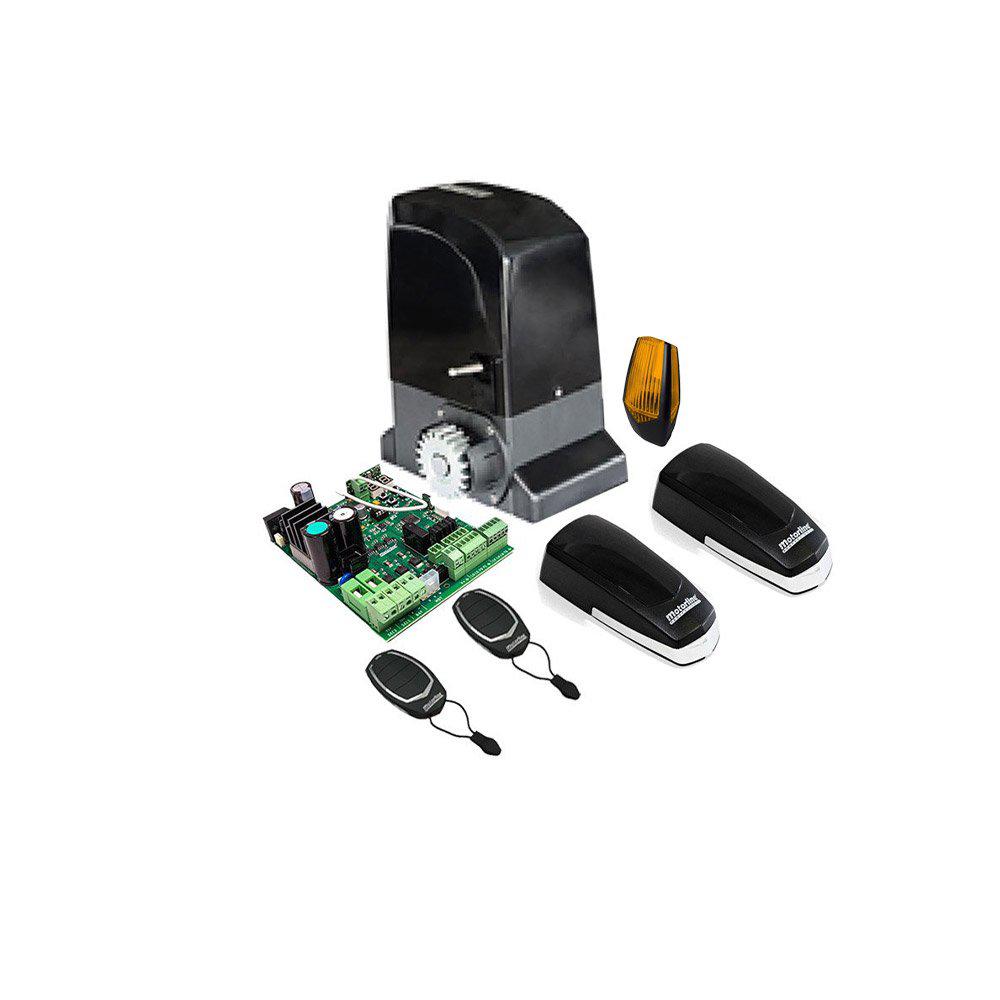

KIT GALO1000 230 VAC 1000N 1200 KG

$535,00

Available on backorder

EAN: KIT GALO1000 SKU: KIT GALO1000 Category:

Description

KIT GALO1000 230 VAC 1000N 1200 KG Brushless motor GALO1000: Motor technology: BLDC Motor reduction type: Irreversible Protection class: IP44 Power supply: 230 Vac – 50/60 Hz Motor power: 36 Vdc Control board power supply 21/26 Vac Nominal current: 10A Maximum absorbed current: 18A Nominal power: 360W Nominal speed: 15 m/min (0.260 m/s) Maximum speed (50% of gate weight) 19 m/min (300 m/s) Cycles/hour: Continuous operation Impulse force: 1000N Operating temperature: -20°C to +55°C Type of stroke limiter: Magnetic/Mechanical Encoder: Native digital encoder Control board: MC91BL-SC Backup batteries (Optional): MBAT24V Maximum gate weight: 1200 Kg Pinion diameter 84 mm MC91BL-SC control board: Motor power supply 26Vac Control board power supply 21 Vac Flashing light output 24Vdc 4W Max. RGB flashing light output 24Vdc 100mA Max. Motor output 24Vdc 400W Max. Auxiliary accessories output 24Vdc 8W Max. Security devices and button output 24Vdc Operating temperature -25°C to +55°C Built-in radio receiver 433.92 MHz Compatible remote controls 12bit or Rolling Code Maximum memory capacity 100 (full opening) – 100 (pedestrian opening) Control board dimensions 106×140 mm Fuses F1 | F2 16AL 250V | 1.6AL 250V Battery: 24Vdc 7A FALK remote control: Frequency: 433.92 MHz Number of channels: 4 Emission distance: 100 m (in open field) Operating temperature: -20°C – +70°C Size: 64 x 32 mm Consumption: 12 mA Battery: 3 VDC (1 battery) MF30 photocells: Detection type: IR (Infra-red) IR operating distance: 940 m Detection distance: up to 25 meters Supply voltage: 12/24V DC/AC Consumption: TX – 30 mA/24V DC RX – 30 mA/24V DC Maximum current on relay contact: maximum 1 A/220V DC or 250V AC Protection degree: IP54 Operating temperature: from -20°C to +70°C Size: 50.5 x 25 mm The package contains 1x GALO1000 Motor 1x MC91BL-SC Control Board 2x FALK Remote Control 1x MF30 Photocells

Additional information

Weight 1 kg
