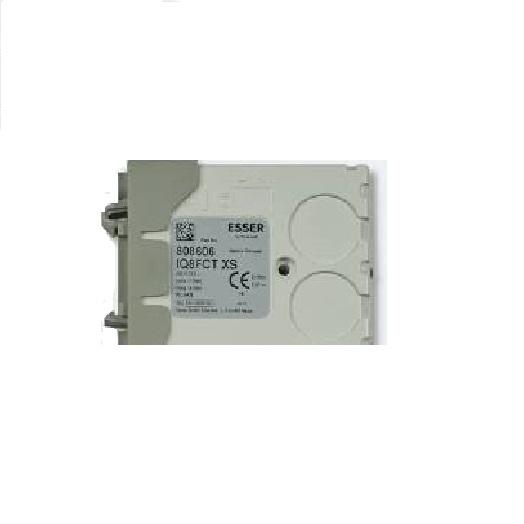

Honeywell TRANSPONDER IQ8FCT XS 808606

Description

Transponder IQ8FCT XS, 808606 used to control and monitor external fire protection devices such as fire dampers or as a technical alarm module (TAL) to monitor an external contact and to control the external load. It is powered between 14 and 42 VDC and has a quiescent current of 45 μA, being designed to operate in the temperature range between -20°C and +70°C and offering IP 30 degree of protection. The device can support a maximum number of 127 devices on the esserbus loop and provides 1x interface contact input / 1x relay output, Humidity: max95%, Operating temperature: between -20°C and +70°C, Dimensions: 93 x90 x 23 mm, Weight: 0.090 Kg.
