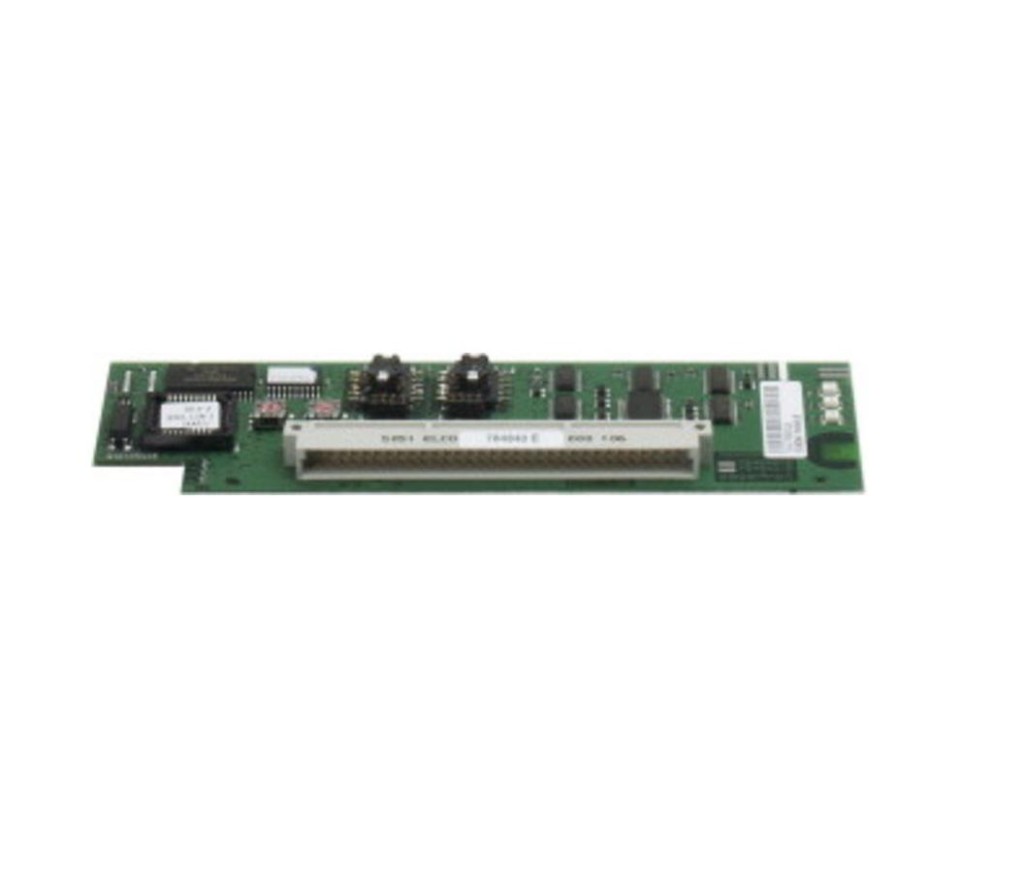

Honeywell ESSERNET MICROMODULE 62.5 KBD

Description

essernet micromodule 62.5 kBd, 784840.10 network connection module max. 16 network participants, protocol: similar to DIN 19245 – 1 (Profibus), topology: ring structure, short-circuit interruption tolerance, channel separation > 75 dB, harmonic distortions at nominal level @ 1 kHz, stationary current @ 12VDC approx. 150 mA, transfer rate and data transmission speed 62.5 KBd, telecommunications cable I Y(St) Y n x 2 x 0.8mm, cable length max. 1000m between two users.
