Honeywell ESSERBUS ALARM TRANSPONDER

Description

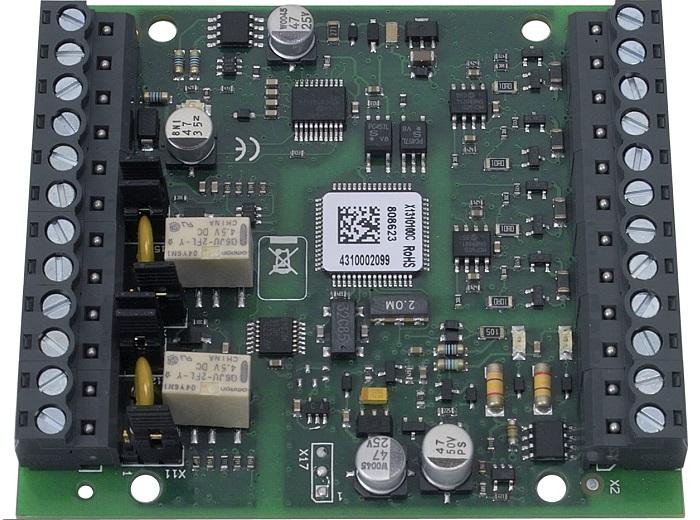

Esserbus 808623 alarm transponder in 4 Z/2 REL with integrated isolator, makes it possible to connect 4 zones with automatic detectors, buttons (addressable) or with special detectors, provides 2 outputs with programmable relays, programmable reset function for relays, monitoring of circuits in in accordance with EN 54-13, occupies the only address on the loop, working voltage 10-28 VDC, relay contact loads 30 VDC / 1A, protection class IP40 (housing), IP55 (with high IP housing), VdS G 210020 certification, dimensions 82 x 72x 20 mm, weight approx. 28g
