Fire cable JY(St)YLg 2x2x0.8 mm RED

Description

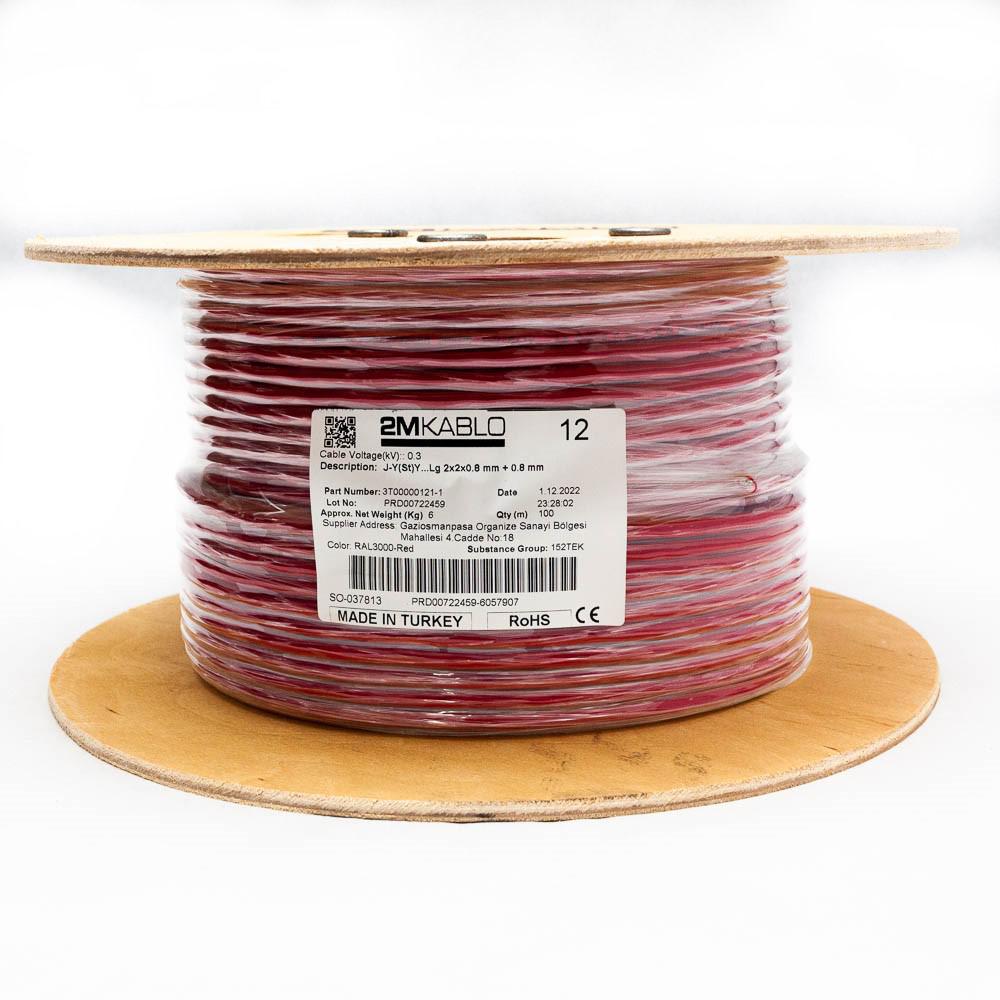

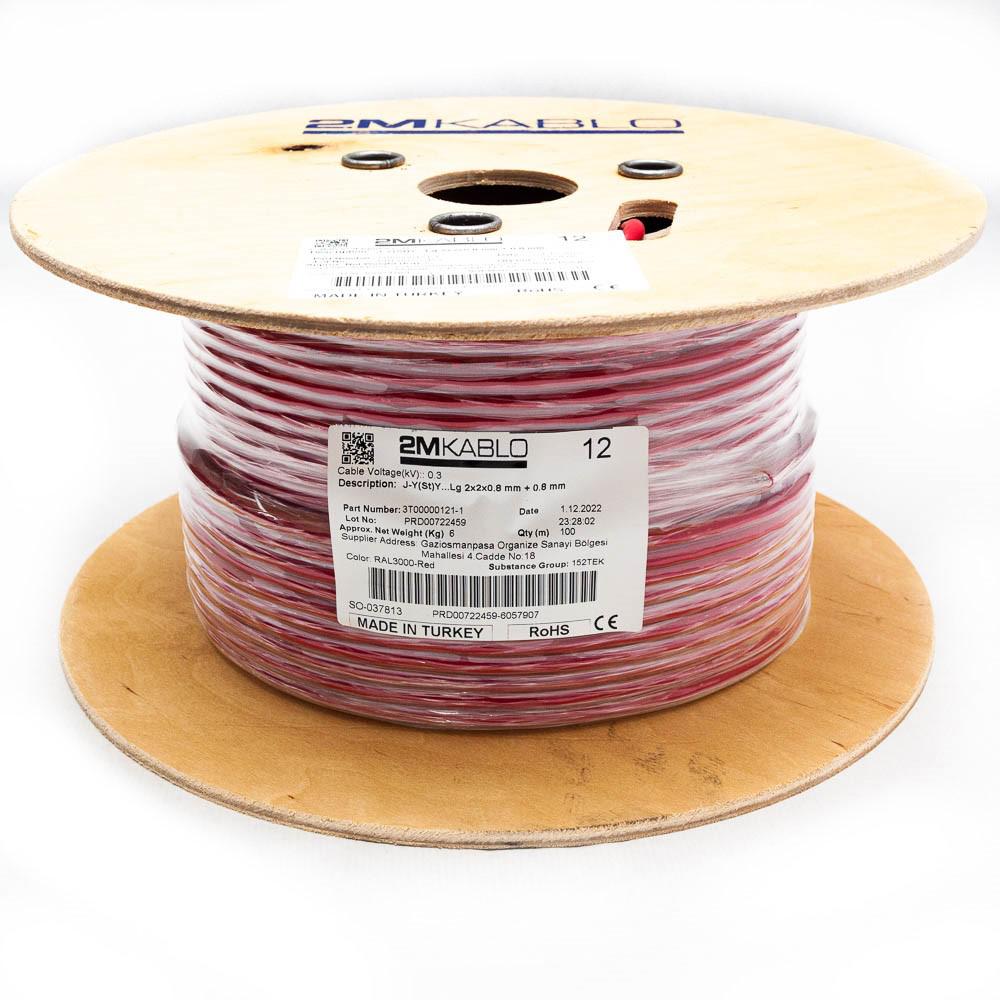

Fire cable JY(St)Y…Lg 2x2x0.8 mm + 0.8 mm; manufacturer 2M Kablo, 3T00000121-1-100; Wire diameter: 0.8mm; Conductor twisted in pairs wrapped in PET tape, Al/PET shielding, copper 100%; Wire colors: VDE 0815; Sheath: PVC, color RAL3000-red; Packaging: drum 100 meters; OperatingVoltage 300V; Wire Resistance IEC 60332-1-2; Conductor Resistance 0.80 mm …… ≤73.2 Ω/km; Insulation Resistance >100 M.Ωxkm; Capacitance(@800Hz) ≤100nF/km; Min.Bending Radius (Fixed) 10xCable Diameter; ;
