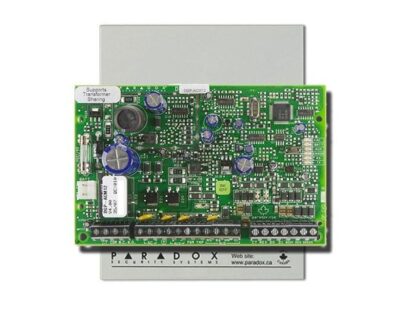

ACCESS CONTROL EXTENSION ACM12

Description

Access control module: 4-wire connections for 1 door: card reader, REX, door contact and doorbell output; compatible with 26-bit Wiegand or 4-wire Paradox readers: R910 / R915; card and/or code access with R915 reader; card and/or PIN arming with R915 reader; local firmware update using CV4USB or 307USB and InField; button to enable or disable the auxiliary output; door left open and/or forced door alarm; door unlock timer and extended time option; automatic unlock schedule; door unlock by pressing the REX button; programmable PGM to activate on a system event (example: door unlock on fire alarm); 1.5A supervised switching power supply; SafeMod operation option (access 4 predefined cards) + metal box (25x25x8 cm), ACM12
