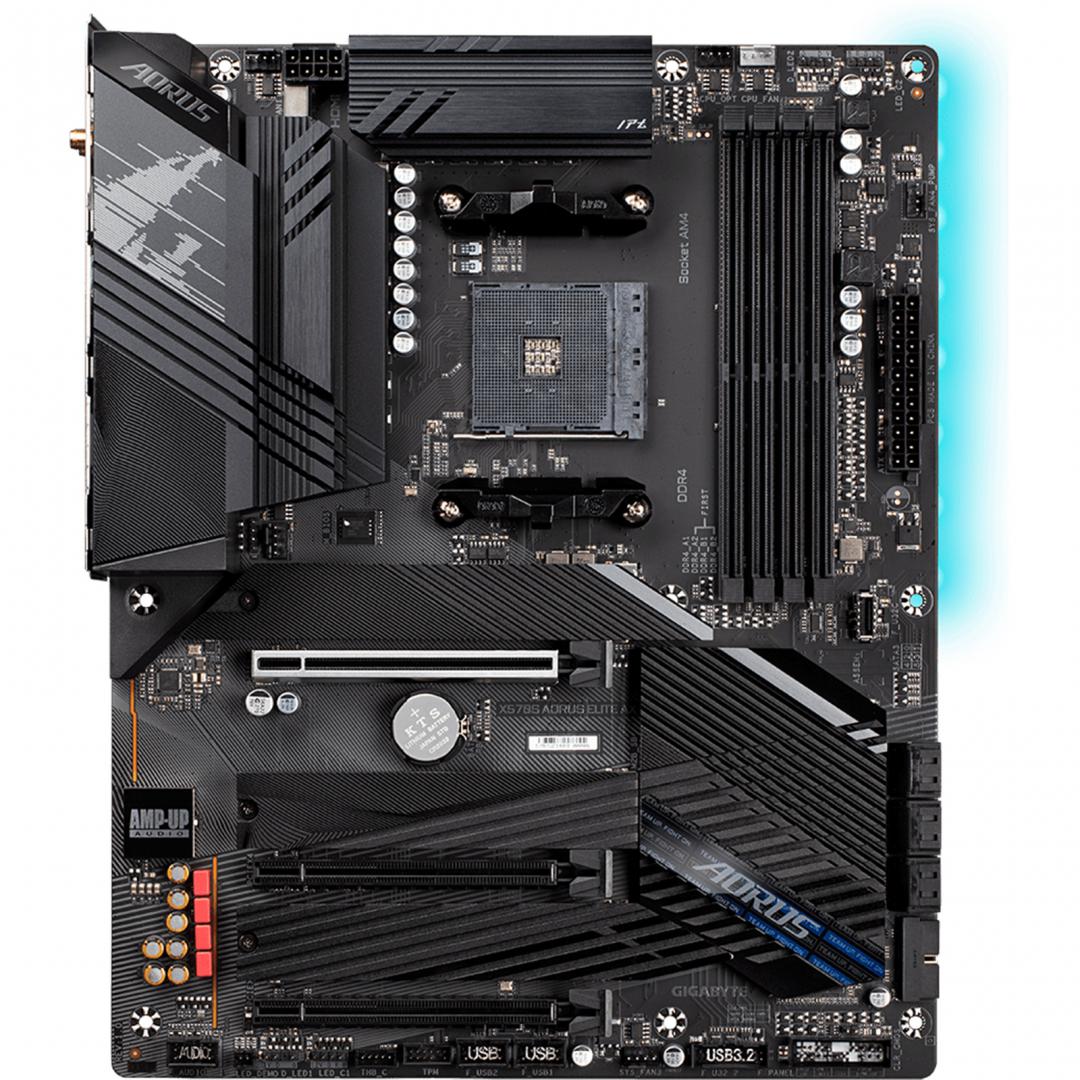

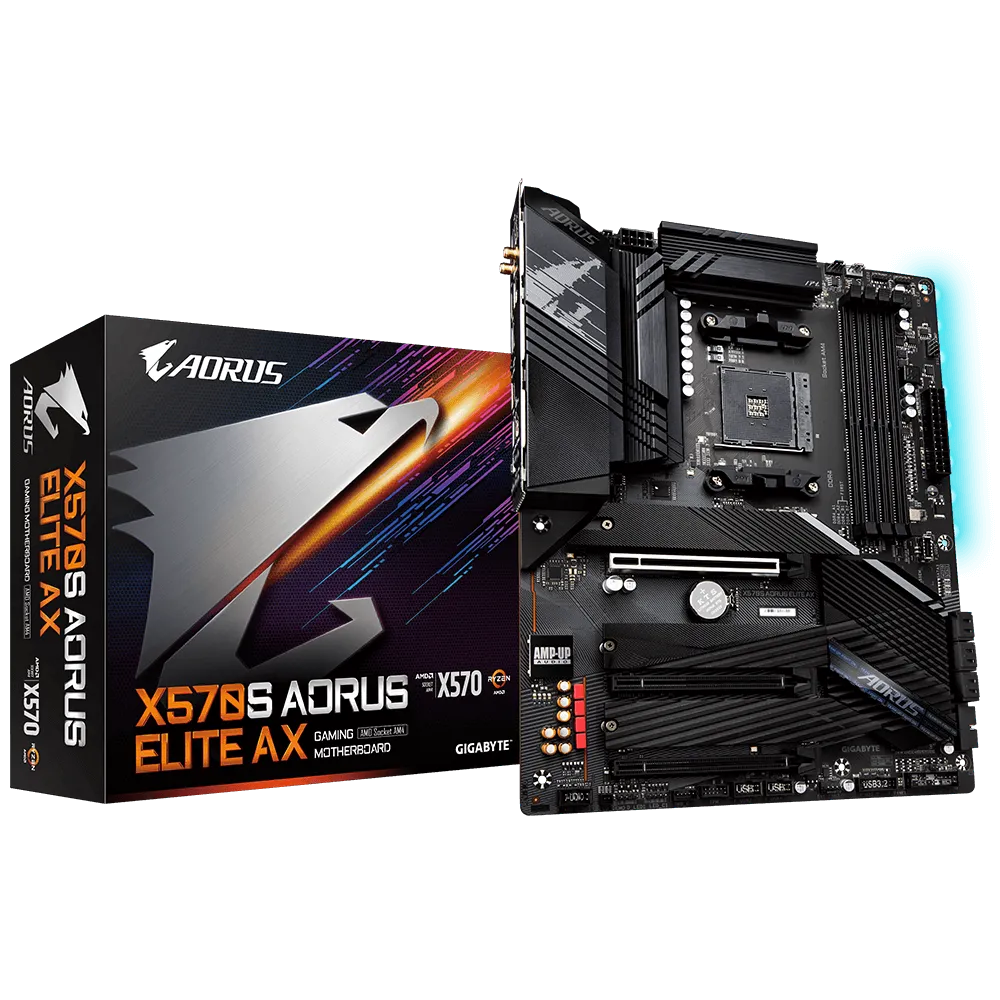

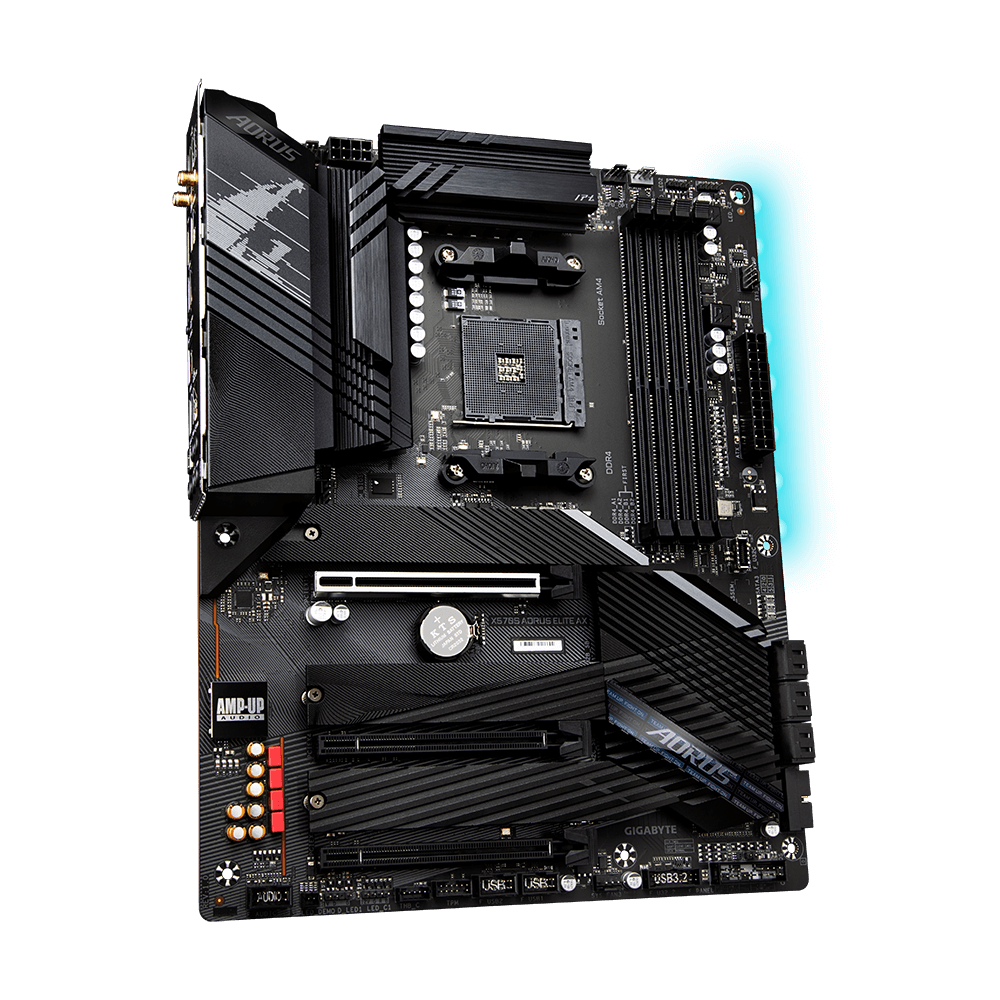

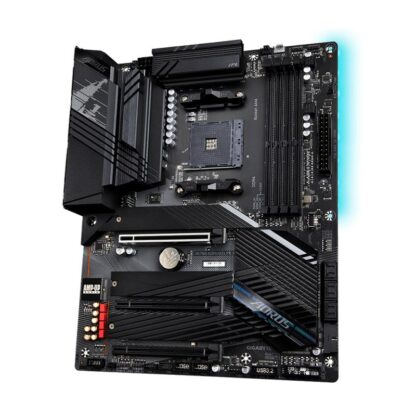

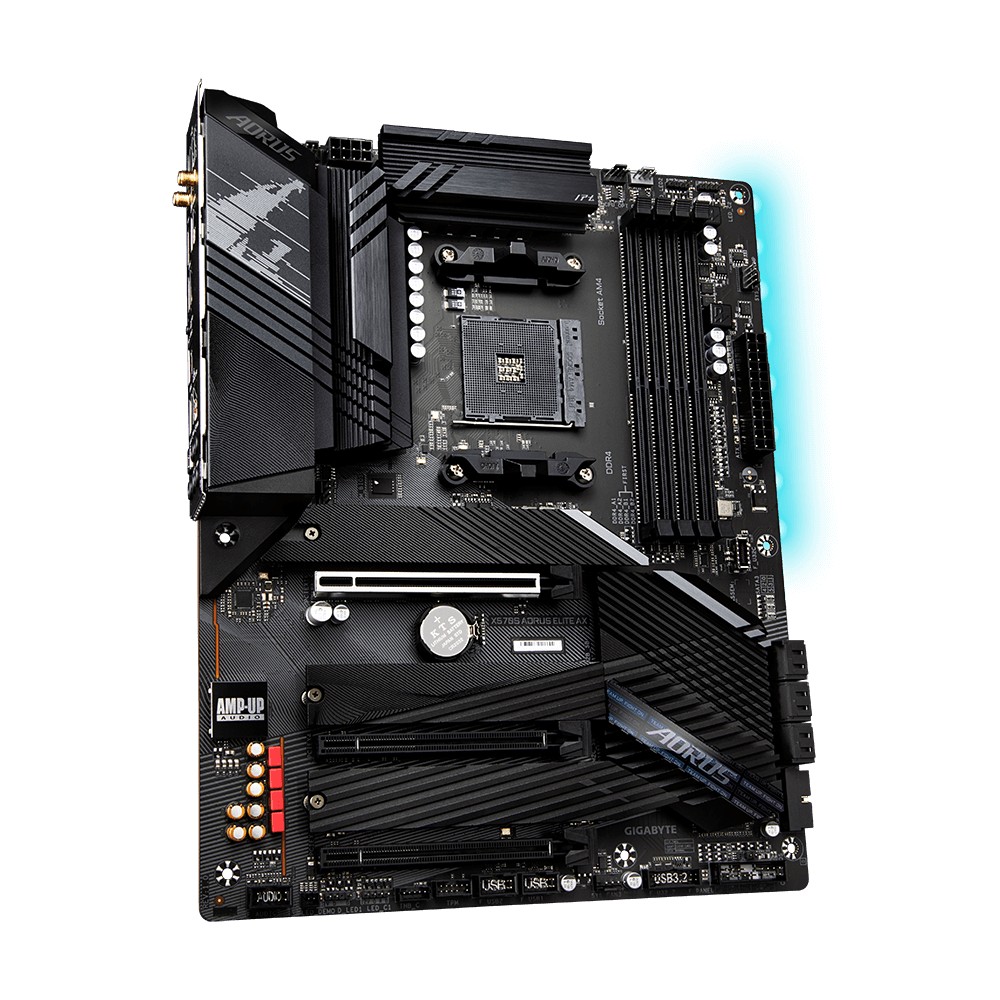

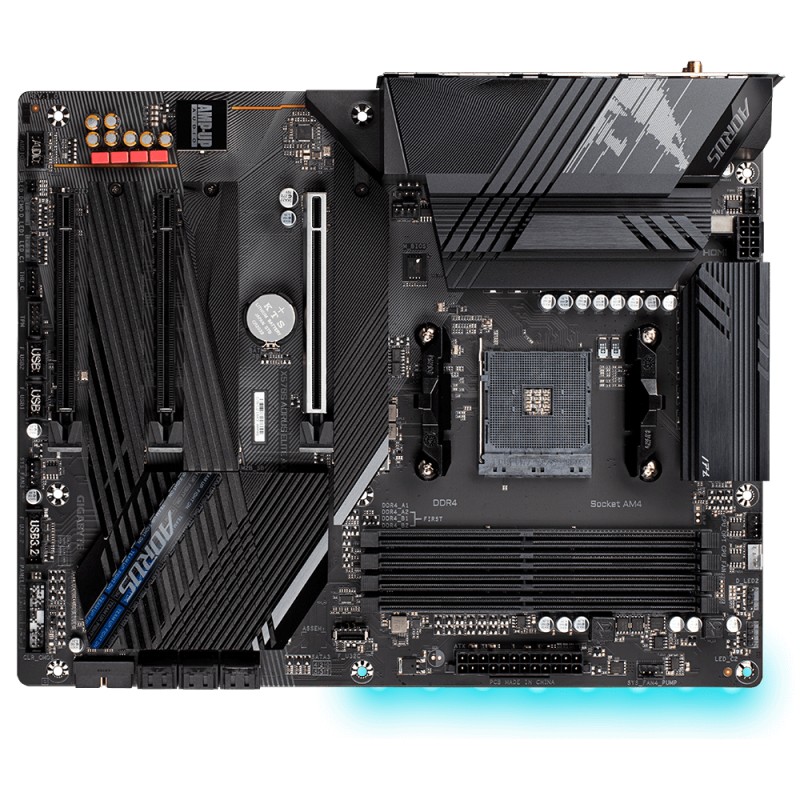

Motherboard GB X570S AORUS ELITE AX AM4

Description

Gigabyte X570S motherboard AORUS ELITE AX AM4 CPU AMD Socket AM4, support for: AMD Ryzen ™ 5000 Series / Ryzen ™ 5000 G- Series / AMD Ryzen ™ 4000 G-Series / AMD Ryzen ™ 3000 Series / AMD Ryzen ™ 3000 G- Series / AMD Ryzen ™ 2000 Series / AMD Ryzen ™ 2000 G-Series Processors (Please refer “CPU Support List” for more information.) Chipset AMD X570 Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 5400 (OC) / 5300 (OC) / 5200 (OC) / 5100 (OC) / 4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3200 (OC) / 2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8 / 2Rx8 memory modules * * ECC memory (ECC mode) support varies by CPU Support for non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer “Memory Support L ist “for more information.) Onboard Graphics Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096×2160 @ 60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory of 16 GB Audio Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4 / 5.1 / 7.1-channel Support for S / PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps) Wireless Communication module AMD Wi-Fi 6E RZ608 (MT7921K) WIFI a, b, g, n, ac, ax, supporting 2.4 / 5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate https://www.gigabyte.com/us/Motherboard/X570S -AORUS-ELITE-AX-rev- 11/sp#sp
