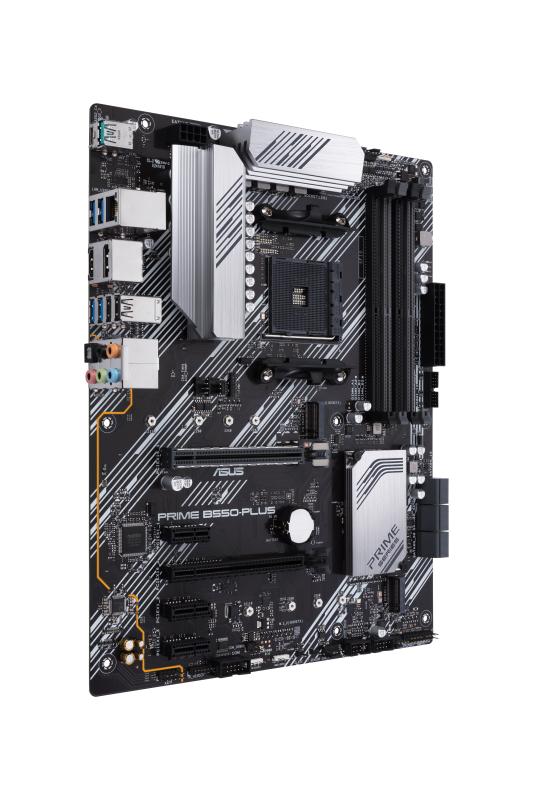

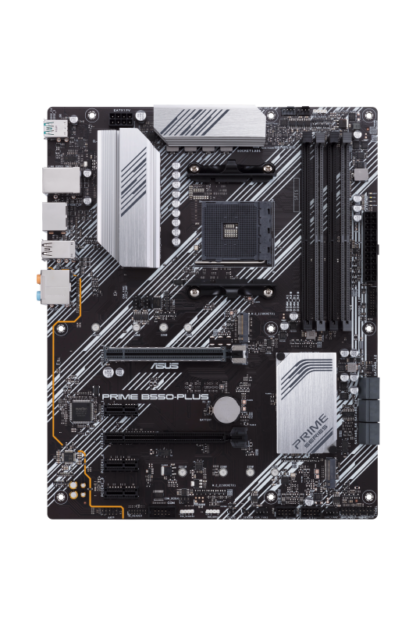

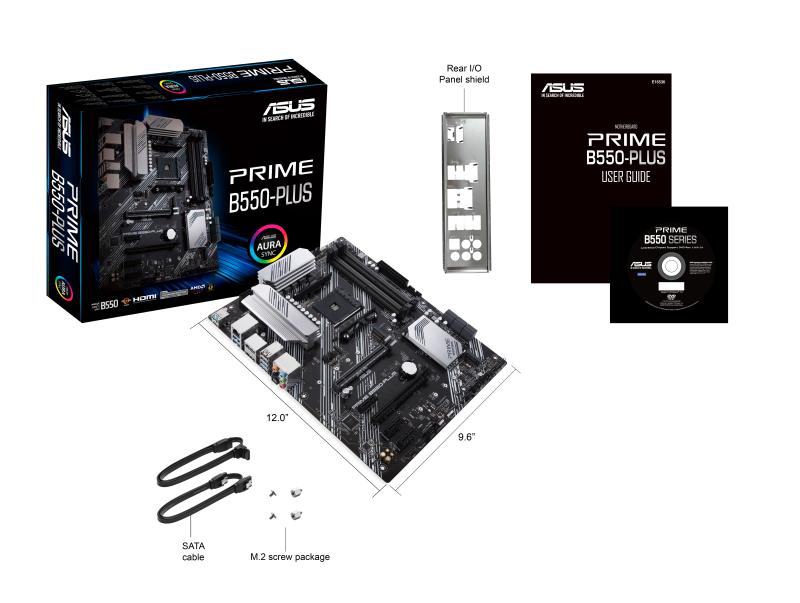

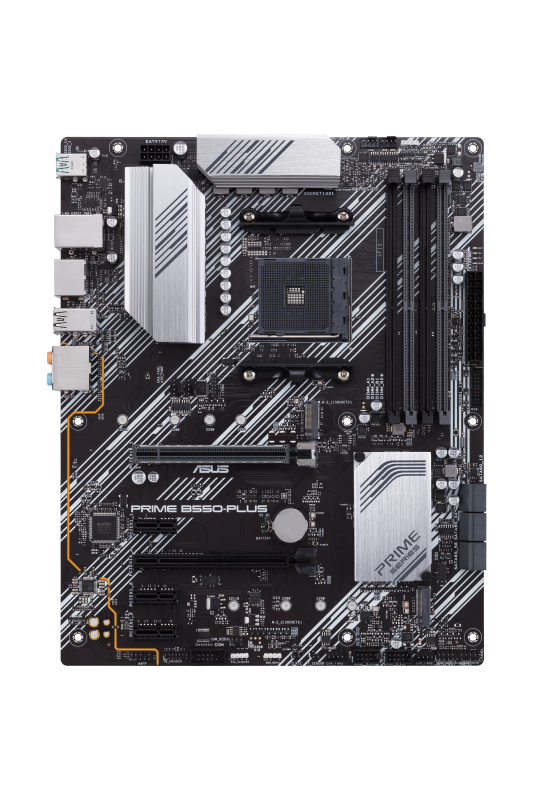

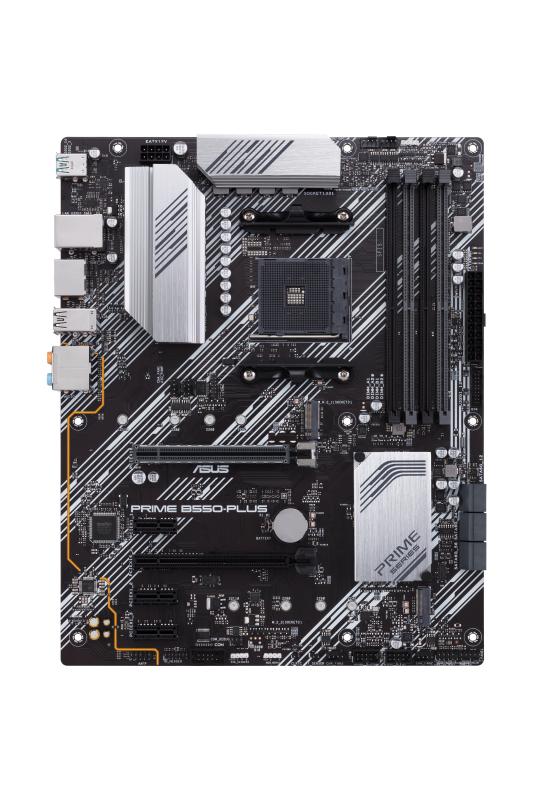

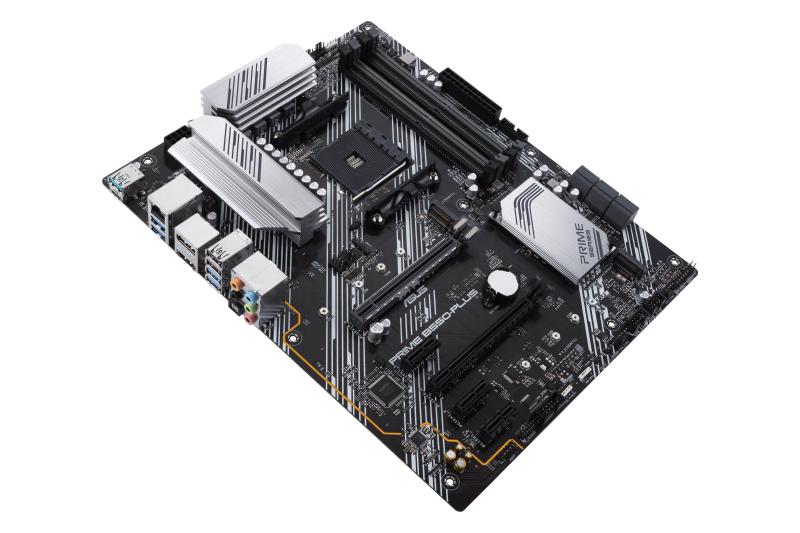

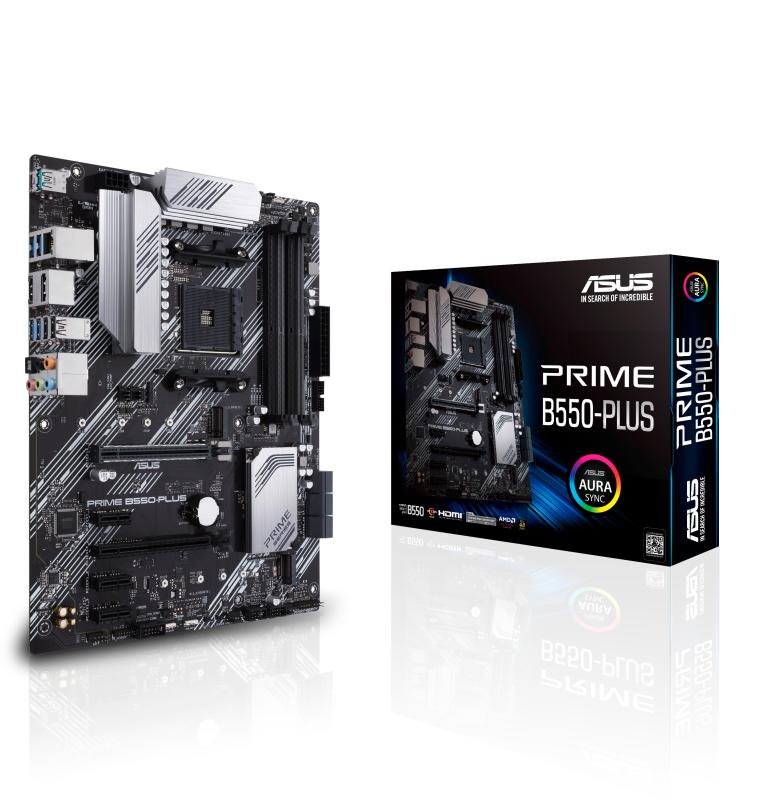

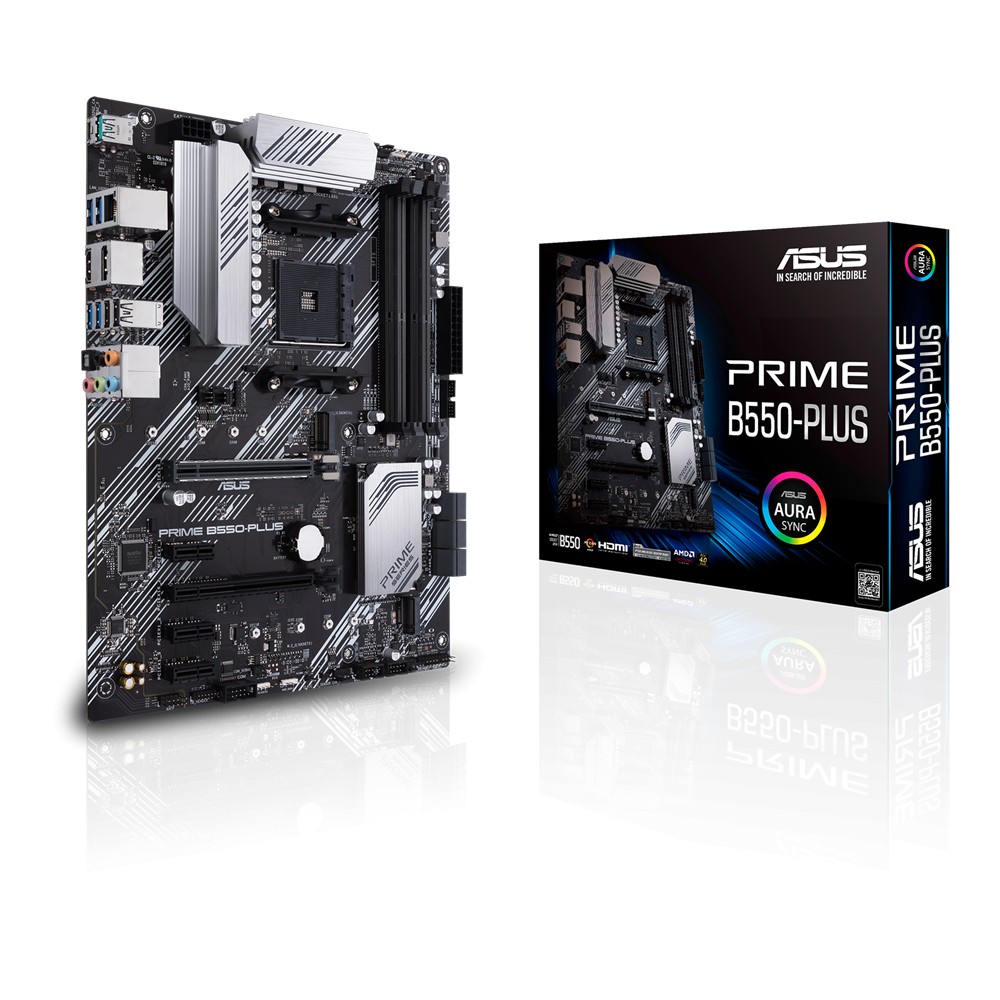

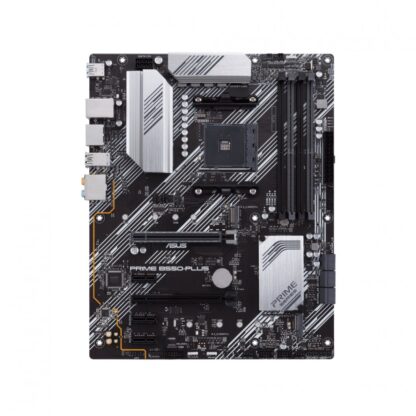

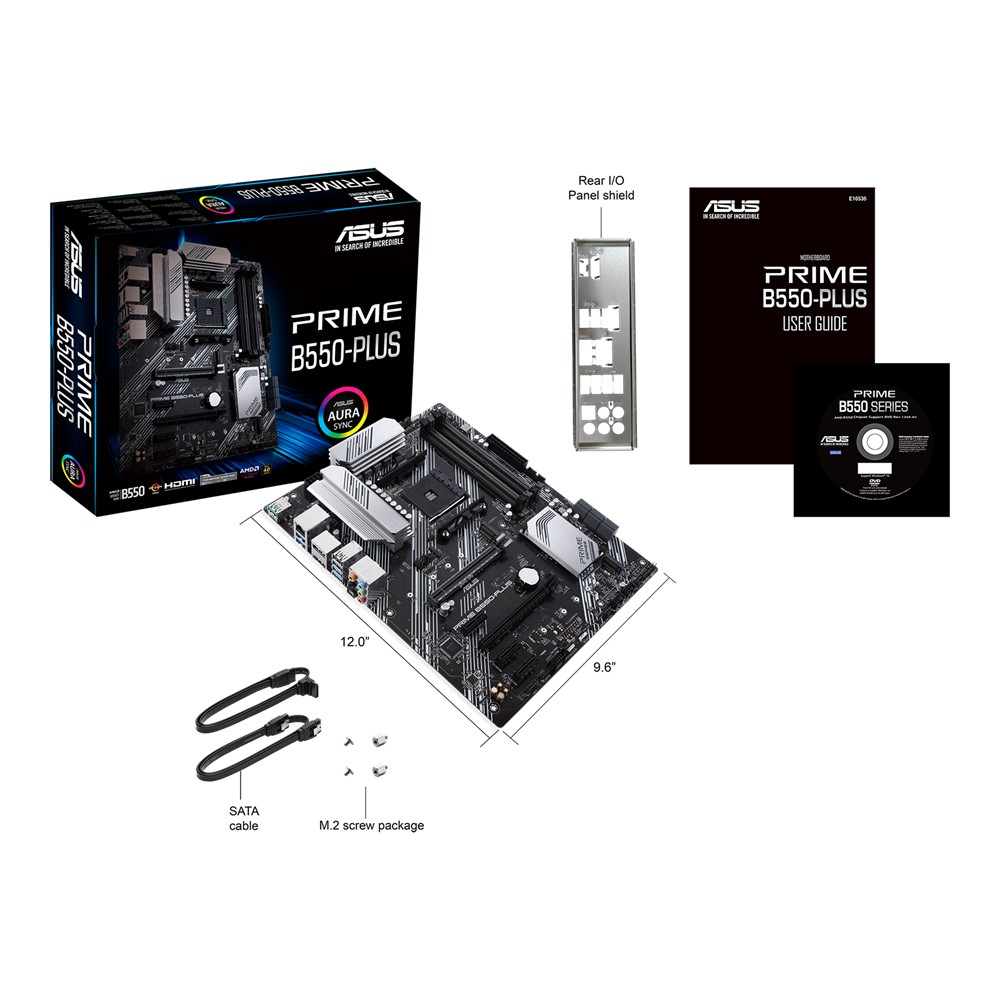

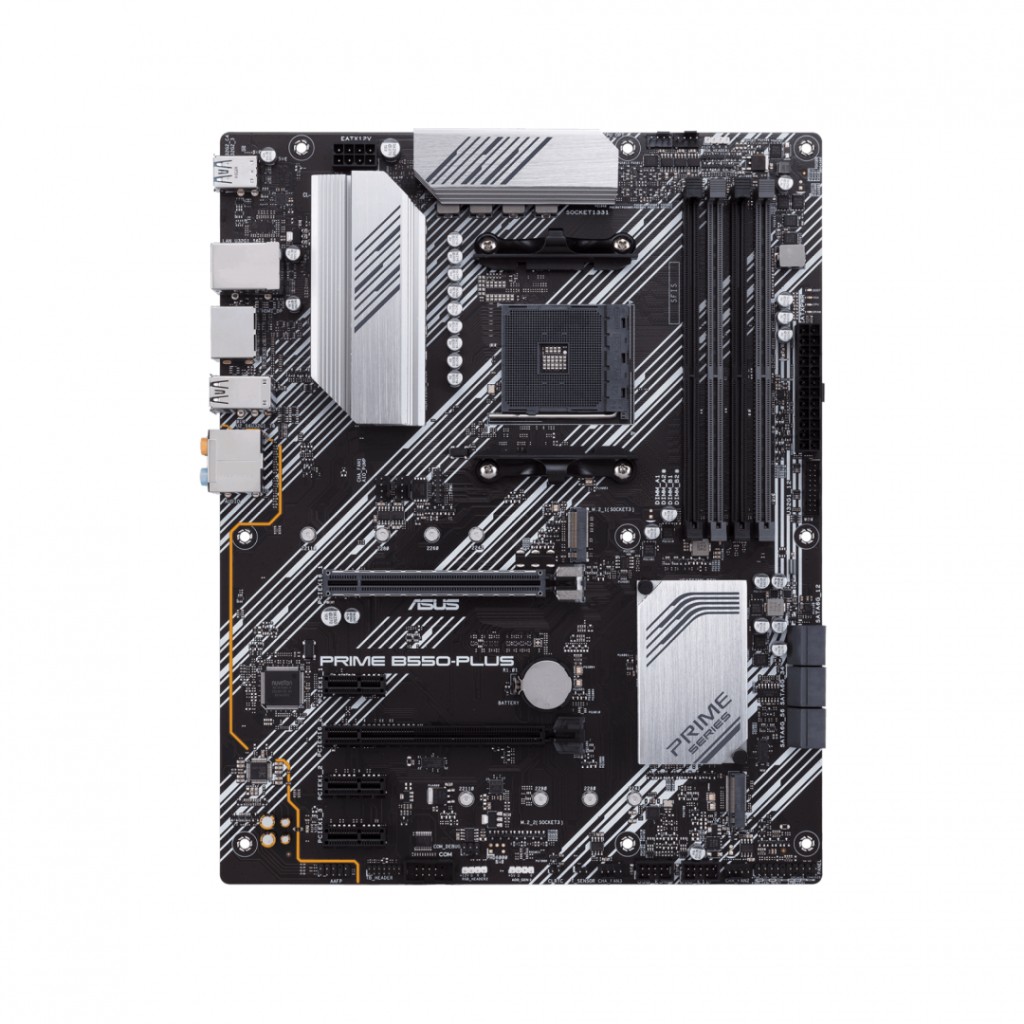

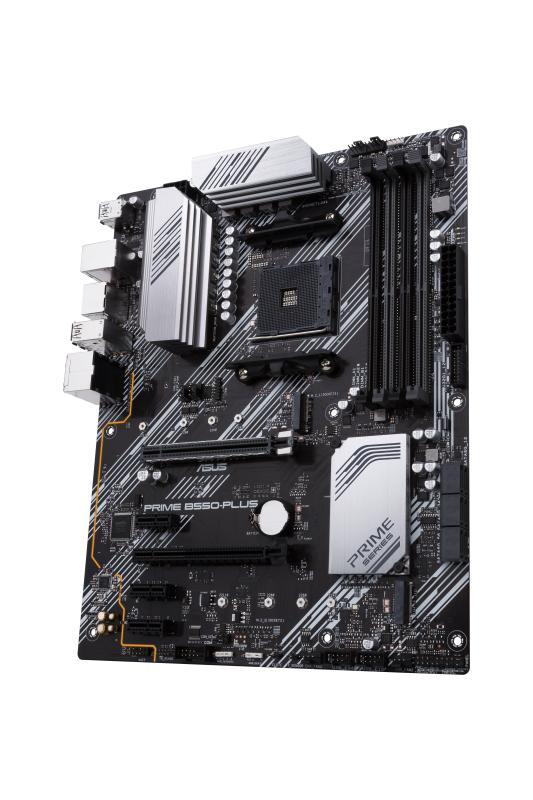

MOTHERBOARD ASUS AMD PRIME B550-PLUS AM4

Description

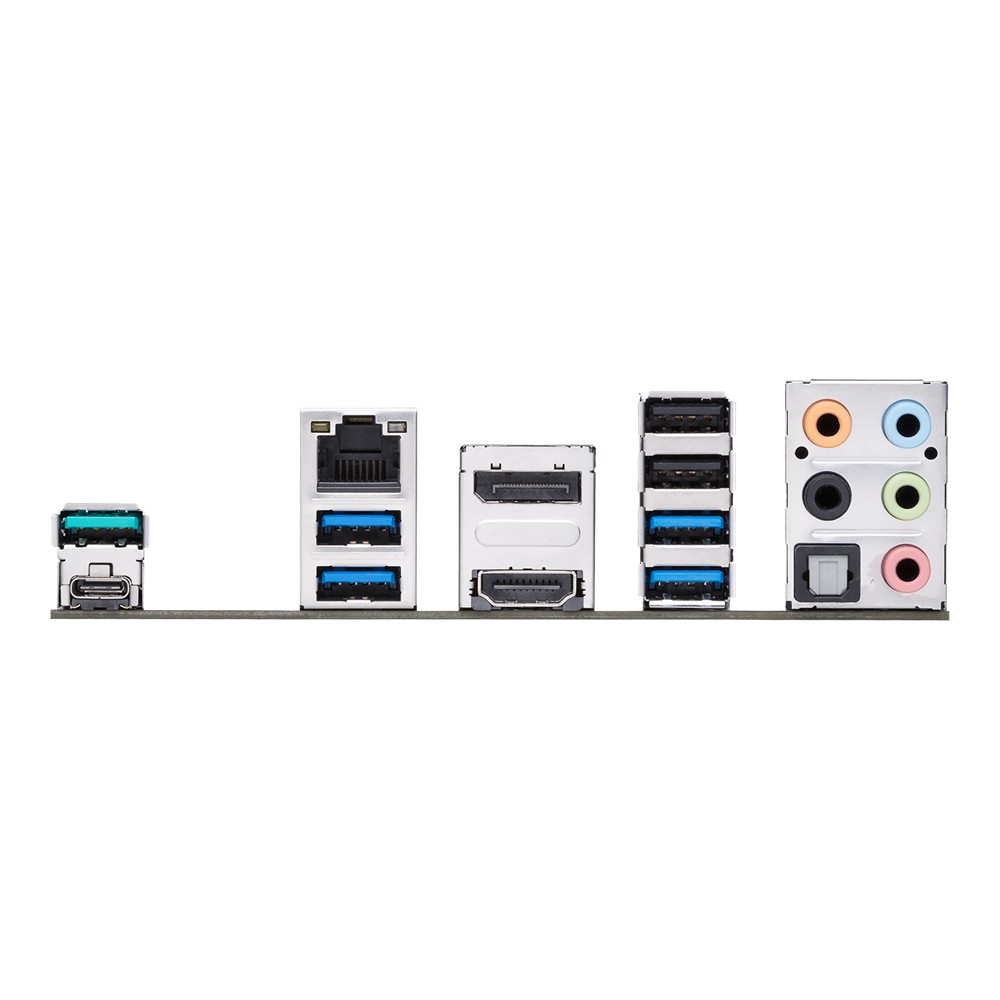

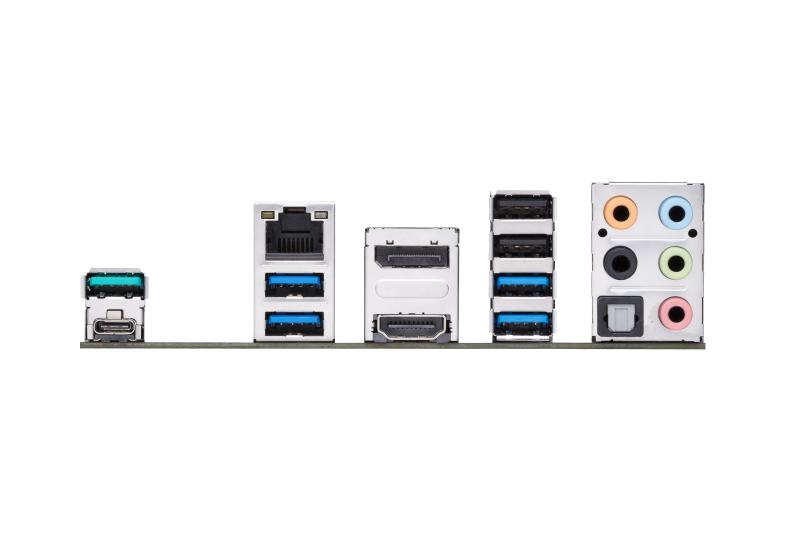

Motherboard Asus AM4 PRIME B550-PLUS CPU Build in AMD AM4 Socket for 3rd Gen AMD Ryzen ™ and 3rd Gen AMD Ryzen ™ with Radeon ™ Graphics Processors * * Refer to www.asus.com for CPU support list Chipset AMD B550 Memory 3rd Gen AMD Ryzen ™ Processors 4 x DIMM, Max. 128GB, DDR4 4600 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3333 ( OC) / 3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * 3rd Gen AMD Ryzen ™ with Radeon ™ Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4800 (OC) / 4600 (OC) / 4466 (OC) / 4400 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3600 (OC) / 3466 ( OC) / 3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com for the QVL (Qualified Vendors Lists) Memory. Graphic 1 x DisplayPort 1.2 * 1 x HDMI 2.1 (4K @ 60HZ) * Graphics specifications may vary between CPU types. Multi-GPU Support Supports AMD 2-Way CrossFireX Technology Expansion Slots 3rd Gen AMD Ryzen ™ Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen ™ with Radeon ™ Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 * Support PCIe bifurcation for RAID on CPU function. Storage Total supports 2 x M.2 slot (s) and 6 x SATA 6Gb / s ports 3rd Gen AMD Ryzen ™ Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen ™ with Radeon ™ Graphics Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode ) AMD B550 Chipset: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) * 2 6 x SATA 6Gb / s port (s), * 2 Support Raid 0, 1, 10 LAN Realtek® RTL8111H ASUS LANGuard Audio Realtek ALC887 7.1-Channel High Definition Audio CODEC – Supports: Jack-detection, Multi-streaming, Front Panel Jack- retasking, up to 24-Bit / 192kHz playback Audio Feature: – Optical S / PDIF out port (s) at back panel – LED-illuminated design – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors – Unique de-pop circuit https://www.asus.com/ Motherboards / PRIME-B550-PLUS / specifications /
