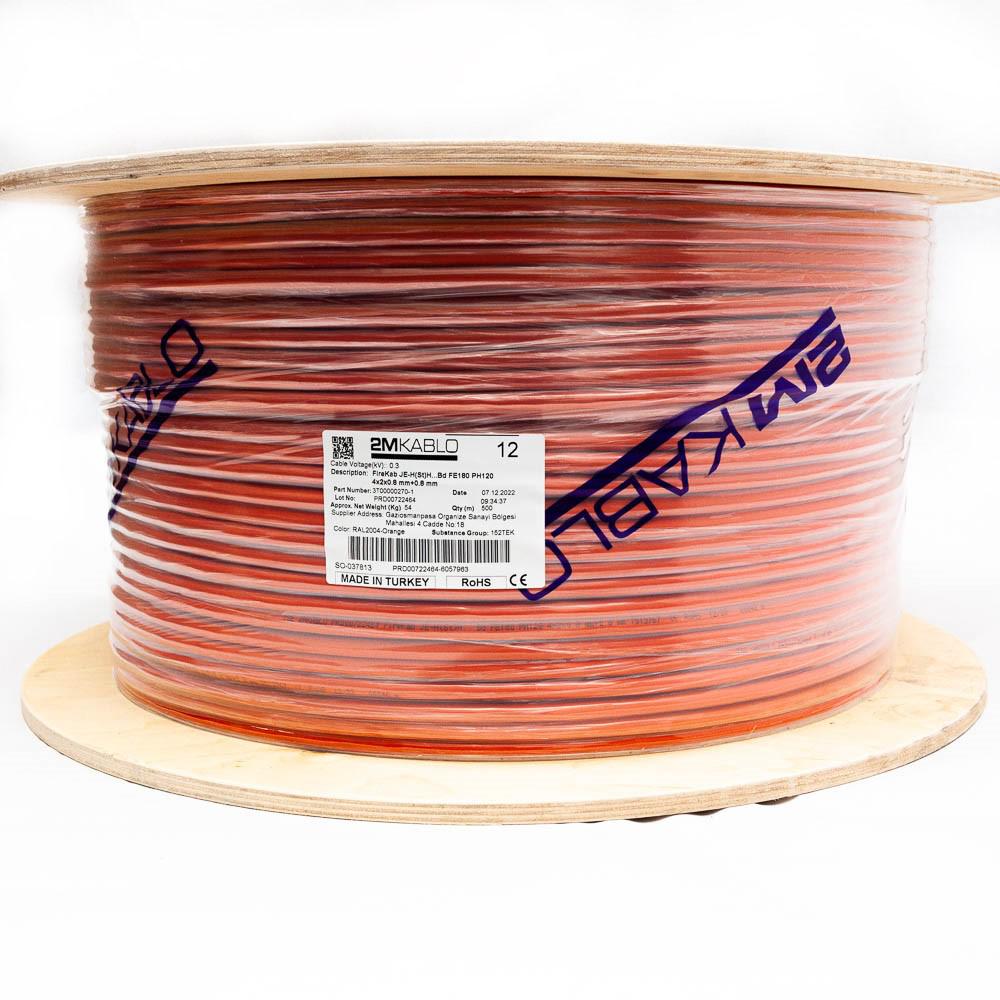

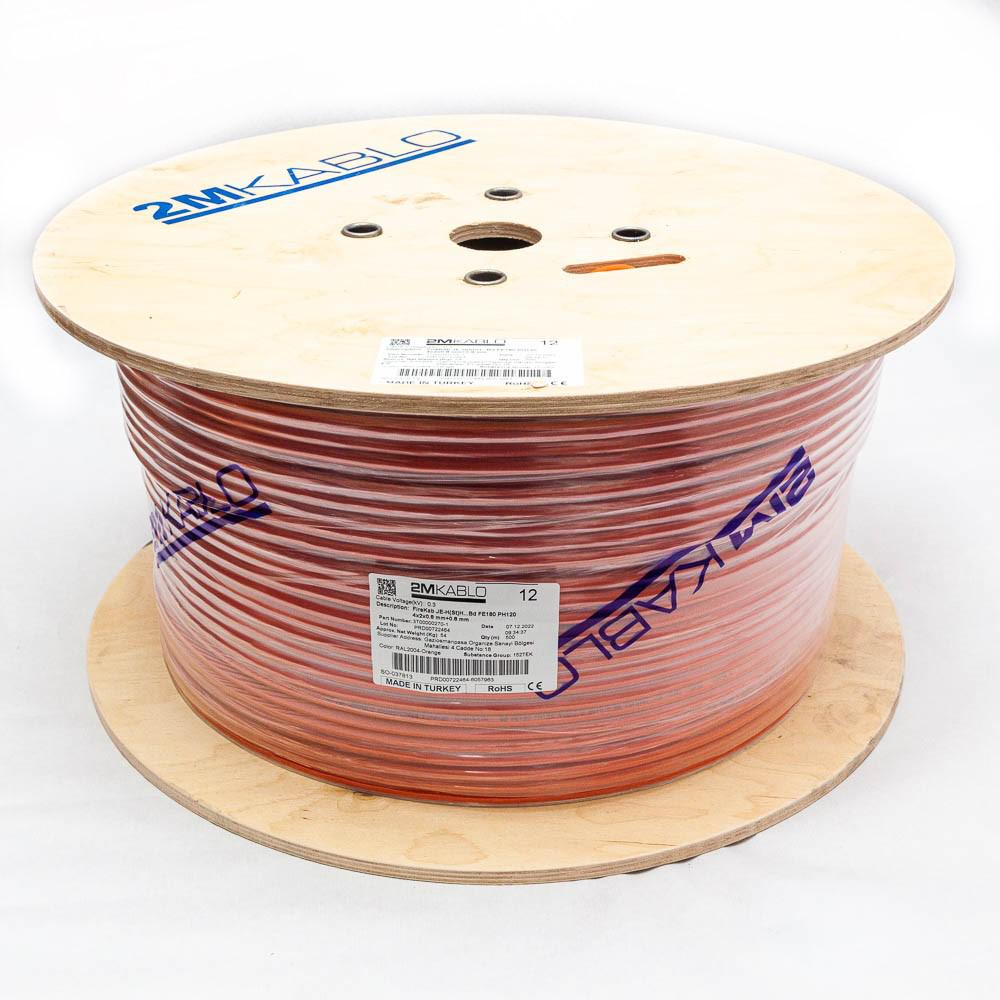

Fire cable JEH(St)H 4x2x0.8mm ORANGE


Only 2 left in stock (can be backordered)

EAN: 3T00000270-1-500 SKU: 3T00000270-1-500 Category:


Fire cable JEH(St)H…Bd FE180 PH120 4x2x0.8 mm+0.8 mm, fire resistance 120 minutes, E30/E90 compatibility; manufacturer 2M Kablo, 3T00000270-500; Wire diameter: 0.8mm; Conductor: pairs twisted with fiberglass protection, 100% copper; Wire colors: according to -VDE0815; Sheath: Halogen free, and flame resistant, orange color (RAL2004Orange), Wire ResistantSilicon Rubber (EN 50363-1, BS7655EI2); Packaging: drum 500 meters; OperatingVoltage 300V; Flame Retardancy IEC/EN 60332-1, IEC/EN 60332-3-24; Fire Resistance IEC60331-21,EN 50200 (PH120); Smoke Density IEC/EN 61034-1/2; CorrosiveGases Measurement IEC/ EN 60754-1/2; Min. Bending Radius: 10x cable diameter; Conductor Resistance 0.80mm – ≤36.6 Ω/km; 1.00 mm – ≤22.2 Ω/km; 1.50 mm² – ≤12.1 Ω/km

Additional information

Weight 55 kg
Dimensions 54 × 54 × 27 cm
