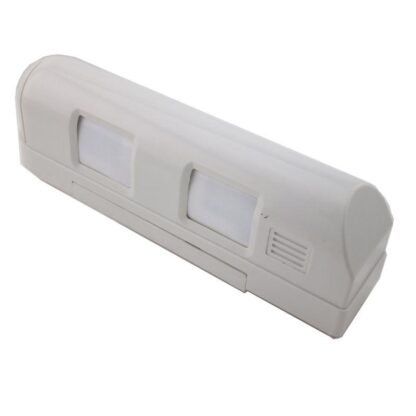

BX-80N external motion detector

Description

External motion detector PIR Optex PTR, ideal for perimeter protection of buildings, “Multiple Detection Pattern” technology which eliminates false alarms caused by the movement of objects or small animals, Recommended mounting height: 0.8 – 1.2 m, Coverage: 24m (12 m on each side), 4 detection zones (2 on each side), 2 NO / NC relay contacts, 28 V / 0.2A max, Operating temperature: from -20 to + 50 degrees Celsius, Detection speed : 0.3 – 1.5 m / s, Adjustable sensitivity, Supply voltage: 9.5 – 18 Vdc, Net weight: 0.4 Kg
